Cellular and Navigation Antenna Assembly Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

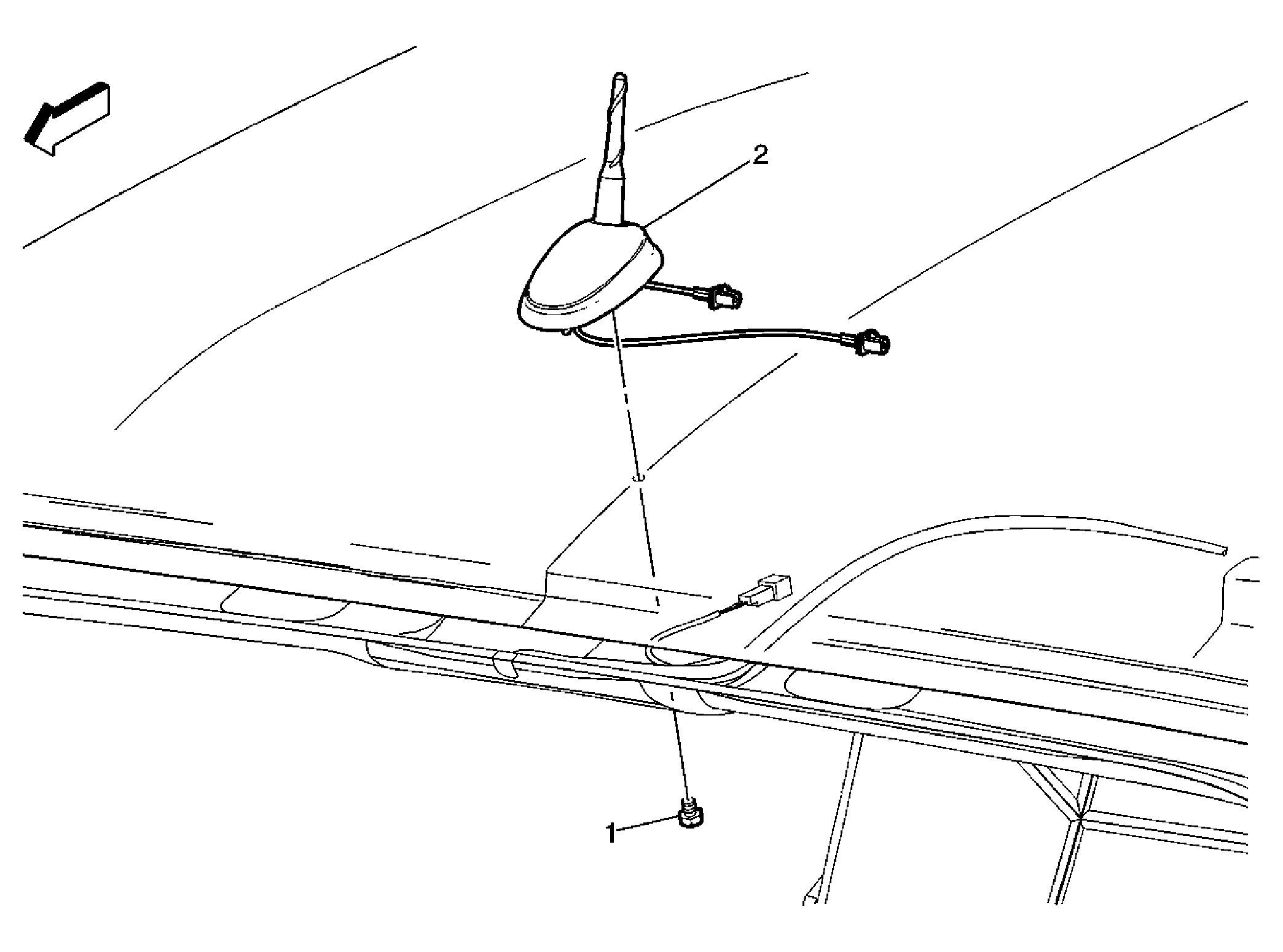

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the front of the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Vehicle Transceiver Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Vehicle Communication Transceiver Assembly Tip: Disconnect the electrical connectors. |
