Front Turn Signal Lamp Bulb Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

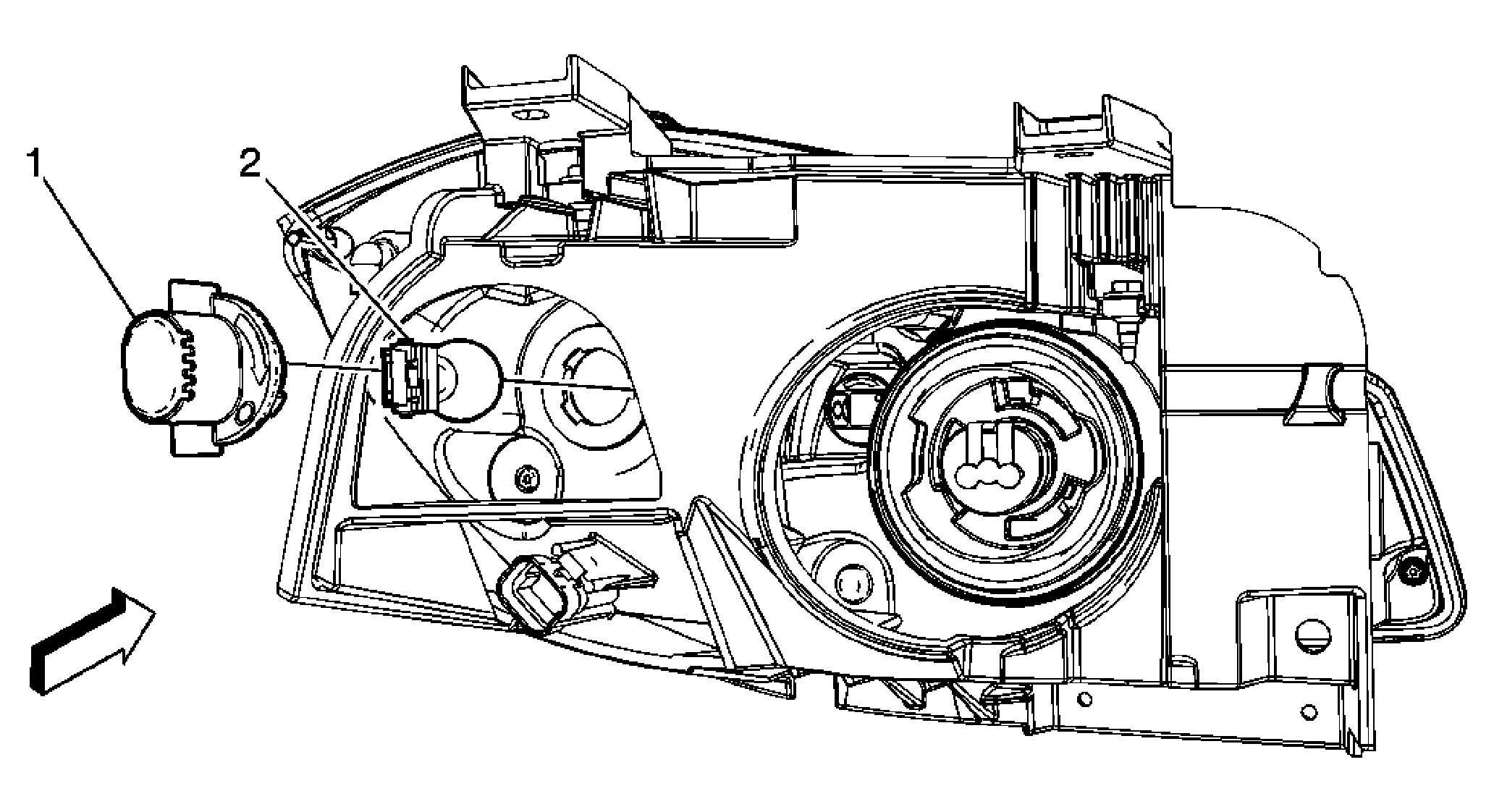

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the headlamp assembly. Refer to Headlamp Replacement . |
|
| 1 | Turn Signal Bulb Connector Tip: Rotate the bulb electrical harness connector counter-clockwise and remove from the headlamp capsule. |
| 2 | Turn Signal Bulb
WARNING:
Refer to Halogen Bulb Warning
. Pull the park turn bulb straight from the bulb harness connector. |
