Start-up procedure and Diagnostic Menu
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
- Start the vehicle, and at the disclaimer screen use the navigation display hard buttons as described below:

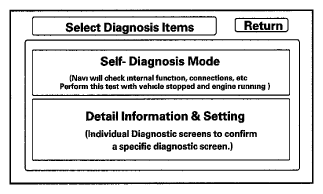

Make sure the battery is in good condition then press and hold the three buttons (MAP/GUIDE, MENU, and CANCEL), for about 3 seconds. The display screen goes directly to the Select Diagnosis Items menu shown.
- Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
- Detail Information & Setting (allows you to manually diagnose the navigation system)
