Detailed Information & Settings

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

This section allows you to run a specific diagnostic and allows additional setting choices for some screens that are not shown when selecting an icon from the System Links screen.

When you select the menu item Detail Information & Setting menu, the main diagnosis menu is displayed.

Fig 1: Screen Display - Detailed Information & Settings

Courtesy of AMERICAN HONDA MOTOR CO., INC.

To start the test, select the item you wish to check:

Monitor Check
Unit Check
Functional Setup
Coverage Area
GPS Information
Yaw Rate
Version

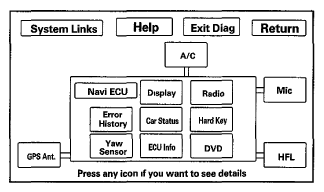

Fig 2: Screen Display - System Links

Courtesy of AMERICAN HONDA MOTOR CO., INC.
