Navigation unit connectors

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

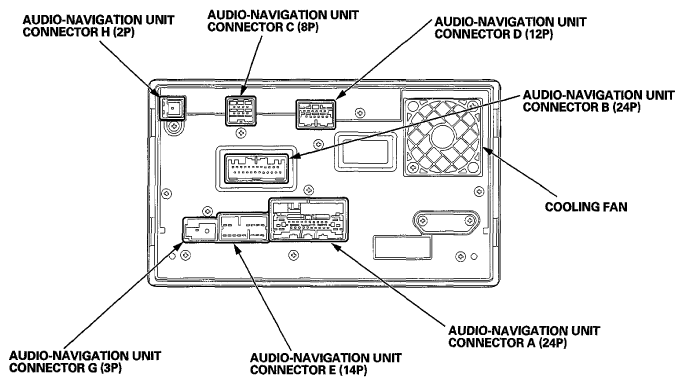

Fig 1: Identifying Navigation Unit Connectors Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the audio section for audio-navigation unit connector E and G input and outputs (see AUDIO UNIT CONNECTOR FOR INPUTS AND OUTPUTS ).
