Front Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

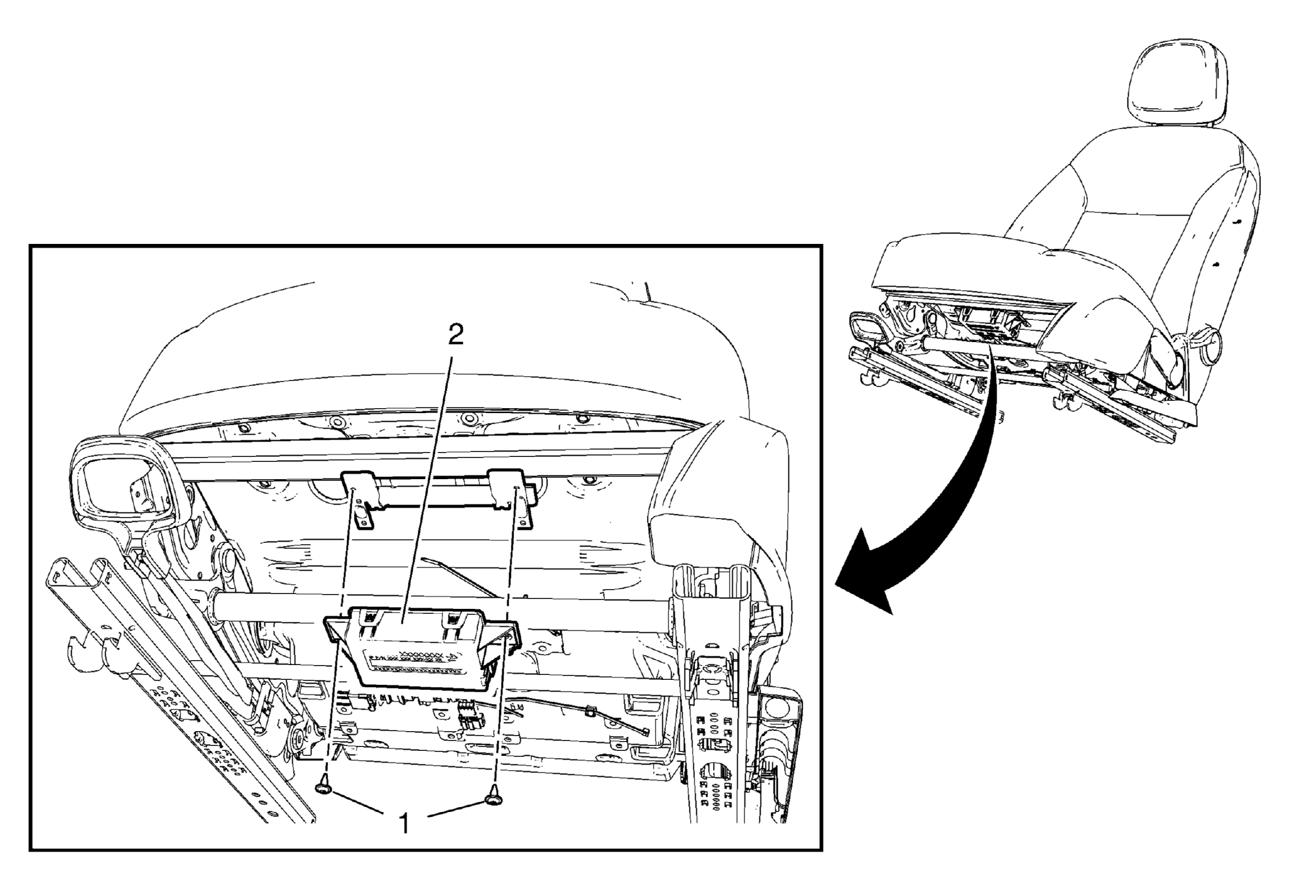

Fig 1: Front Seat Heater Control Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Front Seat Heater Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Move the front seat full backward. Move the front seat in upper position. Disconnect wiring harness connectors. For programing and setup, refer to Control Module References . Tighten 3 N.m (27 lb in)
2	Front Seat Heater Control Module

Callout

Component Name

Preliminary Procedures
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Front Seat Heater Control Module Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure

Move the front seat full backward.
Move the front seat in upper position.
Disconnect wiring harness connectors.
For programing and setup, refer to Control Module References .

Tighten
3 N.m (27 lb in)

Front Seat Heater Control Module
