Installation Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

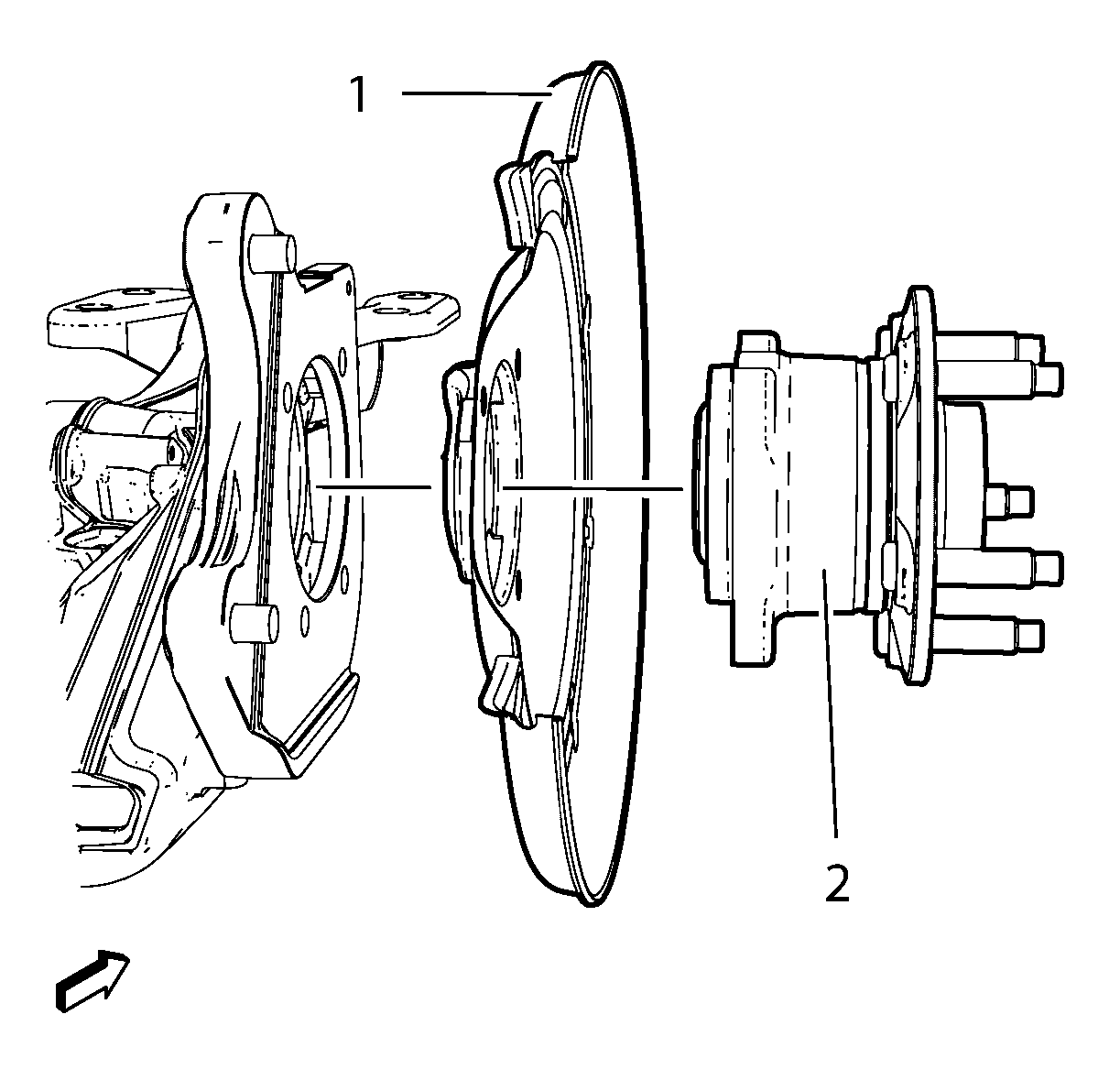

    Fig 1: Wheel Bearing/Hub, Rear Brake Shield And Steering Knuckle
    GM2027698Courtesy of GENERAL MOTORS COMPANY
  1. Position the rear brake shield (1) and wheel bearing/hub assembly (2) onto the rear axle assembly.

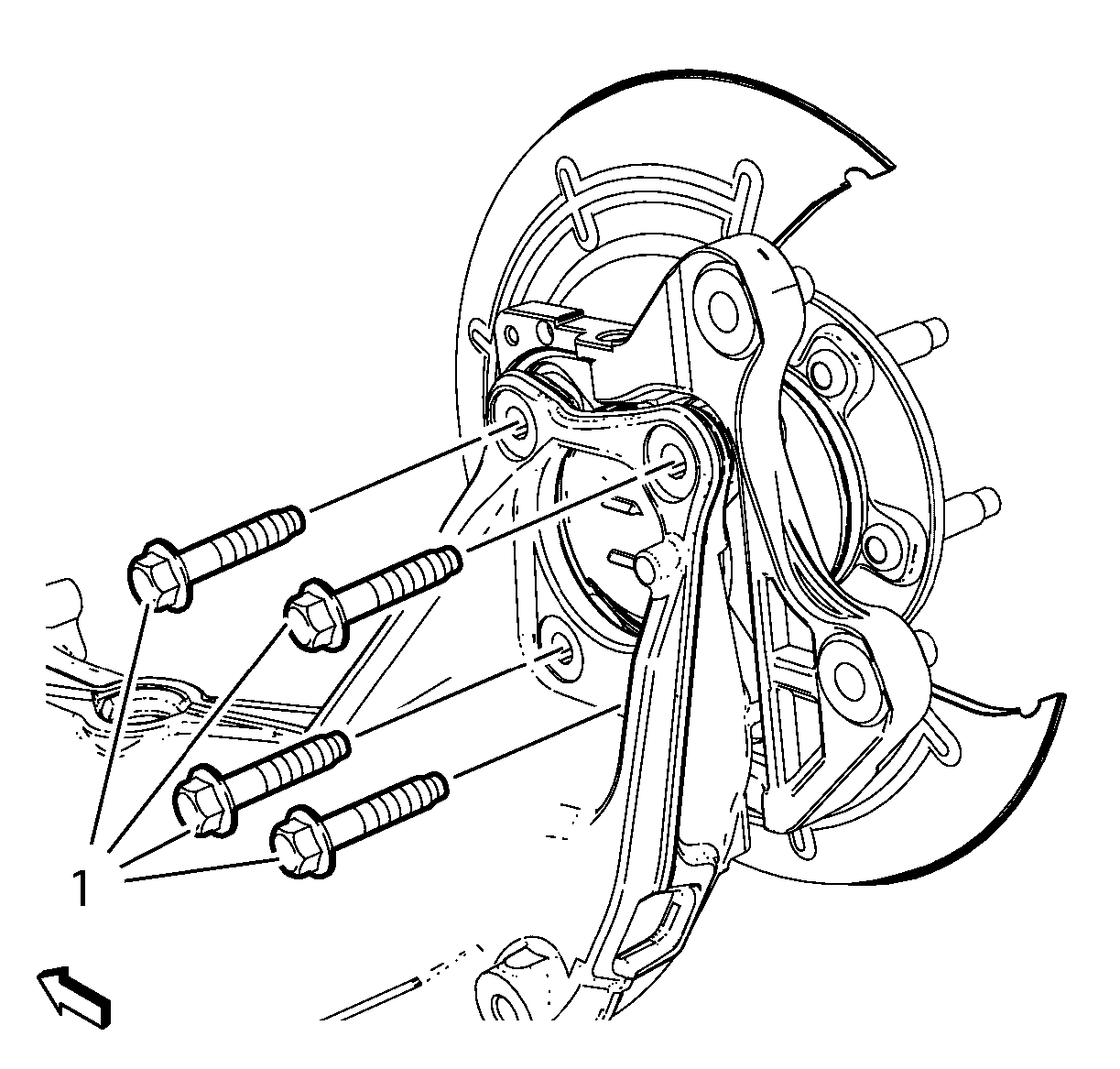

    2. Fig 2: Wheel Bearing/Hub Mounting Bolts
    GM2027695Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install NEW wheel bearing/hub mounting bolts (1) and tighten a first pass to 50 N.m (37 lb ft).
    3. WARNING:

    Refer to Torque-to-Yield Fastener Warning .

  3. Tighten the NEW wheel bearing/hub mounting bolts (1) a final pass to an additional 30 - 45 degrees, using the EN-45059  meter.

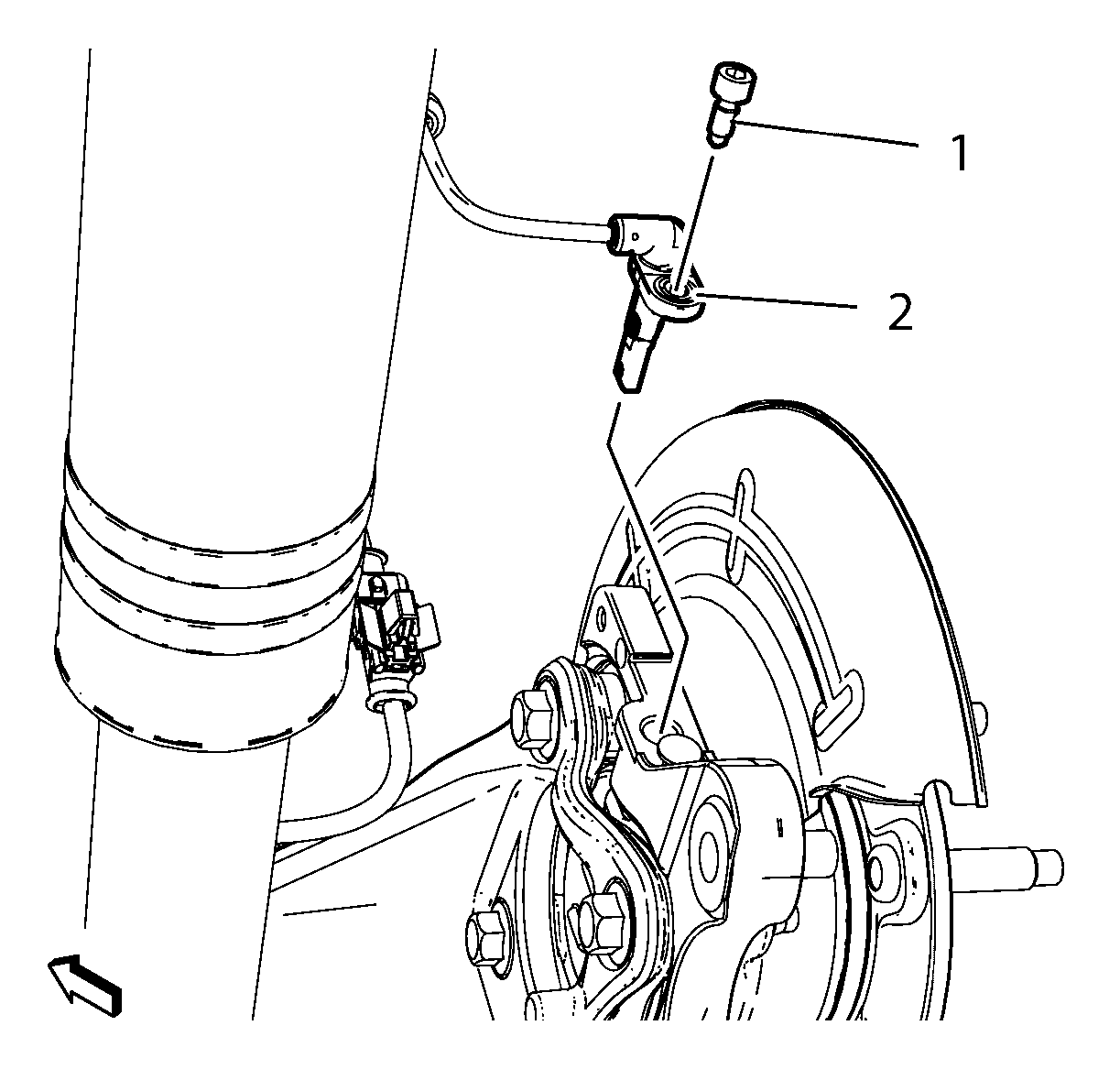

    4. Fig 3: Wheel Speed Sensor & Mounting Bolt
    GM2027694Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor (2).
  5. Install the wheel speed sensor bolt (1) and tighten to 6 N.m (54 lb in).
  6. Install the brake rotor. Refer to Rear Brake Rotor Replacement .
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
