Sunroof Switch Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

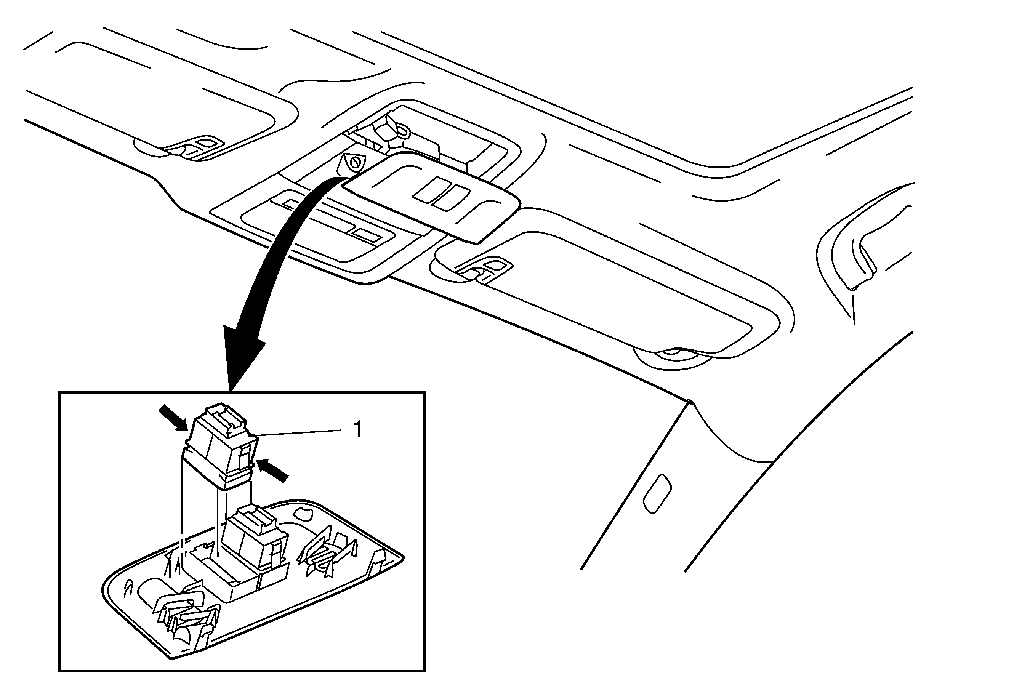

Fig 1: Sunroof Switch (Hatchback, Sedan)
GM2020375Courtesy of GENERAL MOTORS COMPANY
Sunroof Switch Replacement

Callout Component Name
Preliminary Procedures
Remove the sunroof actuator trim cover. Refer to Sunroof Actuator Trim Plate Replacement .
1 Sunroof Switch
Procedure
Unsnap the switch from the console.
