Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure that the steering wheel is set in a straight ahead position.

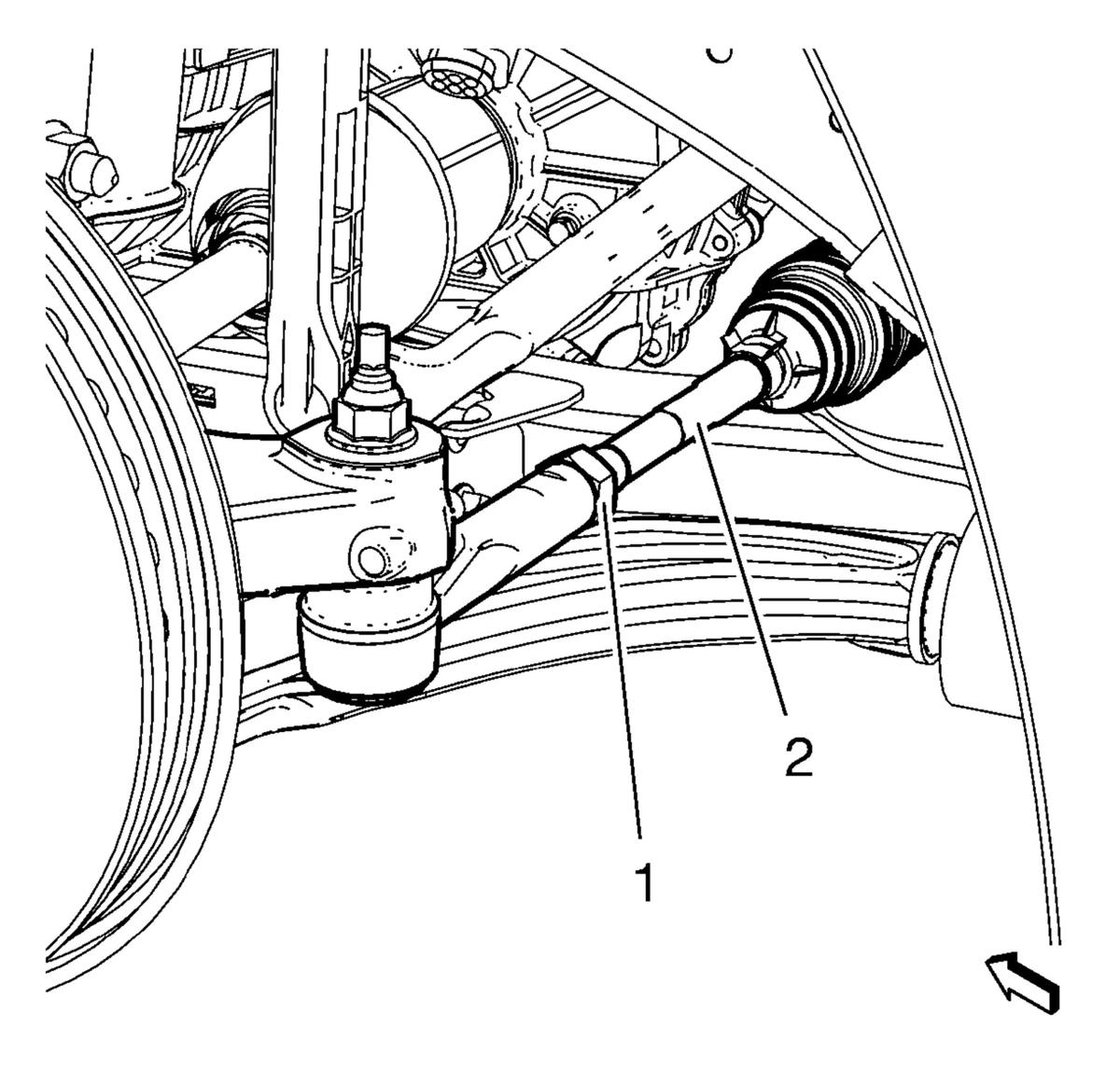

- Loosen the tie rod jam nut (1).
- Adjust the toe to specification by turning the inner tie rod (2). Refer to Wheel Alignment Specifications .
- Tighten the tie rod jam nut (1) to 60 N.m (44 lb ft).
CAUTION:
Refer to Fastener Caution .
