Rear Side Door Lock Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

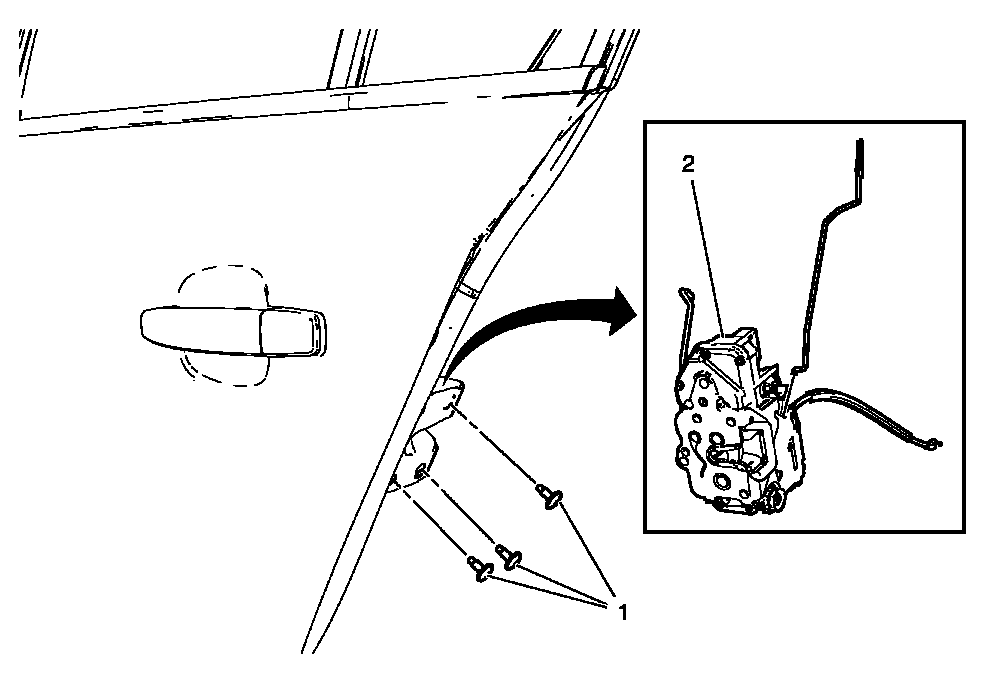

Fig 1: Rear Side Door Lock & Bolts
GM2190588Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Lock Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement .
  2. Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  3. Remove the rear door outside handle. Refer to Rear Side Door Outside Handle Replacement .
  4. Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .
  5. Remove the rear side door window rear channel. Refer to Rear Side Door Window Rear Channel Replacement .
1 Rear Side Door Lock Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m(80 lb in)
2 Rear Side Door Lock

Procedure

  1. Release the inside handle cable retainers before removing the door lock.
  2. Disconnect the door lock electrical connector.
  3. Remove the door lock with the handle housing.
  4. Transfer the handle and lock rods to the new door lock.
  5. Inspect the lock, lock cylinder and handle adjustments. Refer to Rear Side Door Outside Handle Rod Adjustment .
