Front Side Door Outside Handle Rod Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

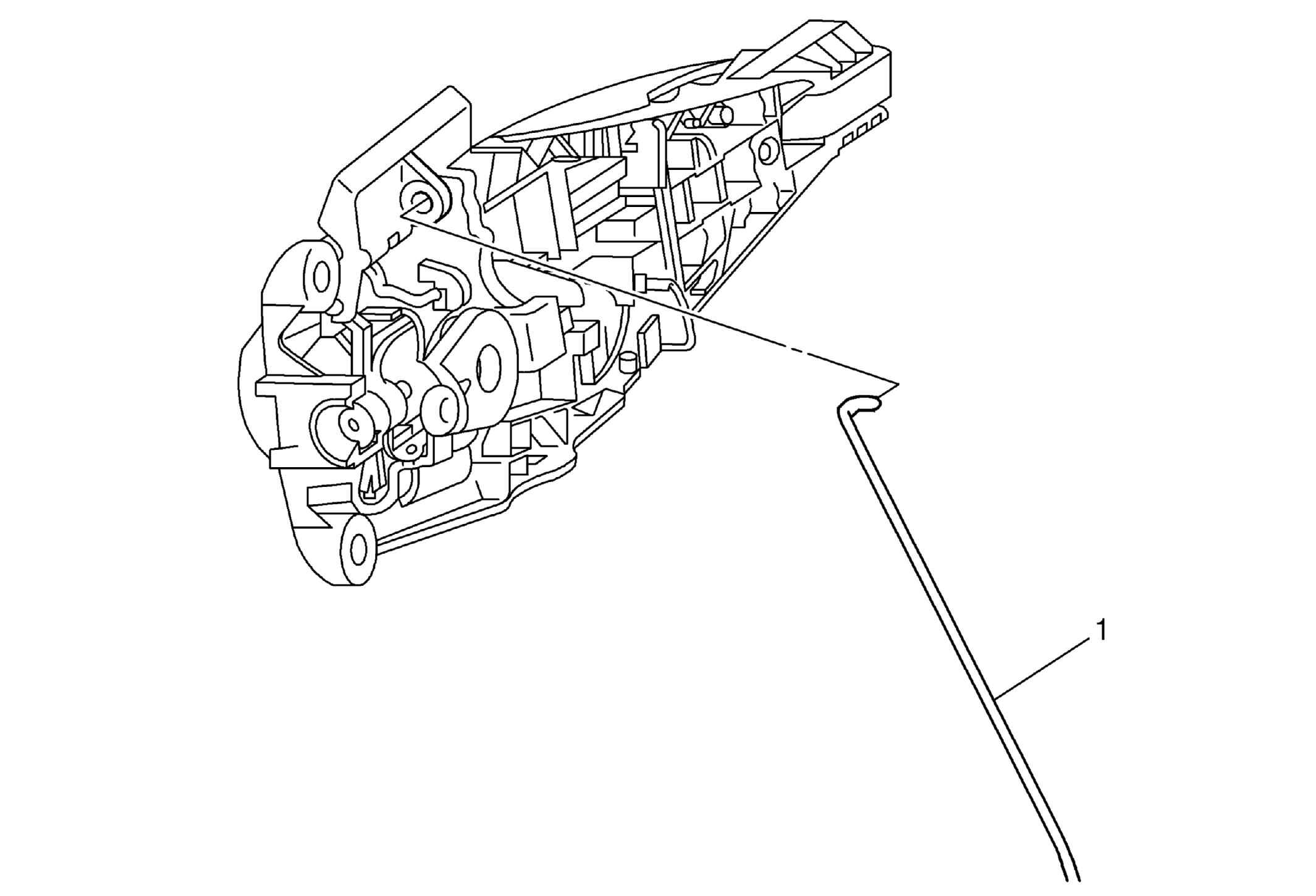

Fig 1: Front Side Door Outside Handle Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door outside handle bracket. Refer to Front Side Door Outside Handle Bracket Replacement .
1	Front Side Door Outside Handle Rod Procedure Open the mechanism by releasing the clip at the shift linkage lever. Adjust front side door outside handle rod. Refer to Front Side Door Outside Handle Rod Adjustment .

Callout

Component Name

Preliminary Procedures
Remove the front side door outside handle bracket. Refer to Front Side Door Outside Handle Bracket Replacement .

Front Side Door Outside Handle Rod

Procedure

Open the mechanism by releasing the clip at the shift linkage lever.
Adjust front side door outside handle rod. Refer to Front Side Door Outside Handle Rod Adjustment .
