Front Side Door Locking Rod Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

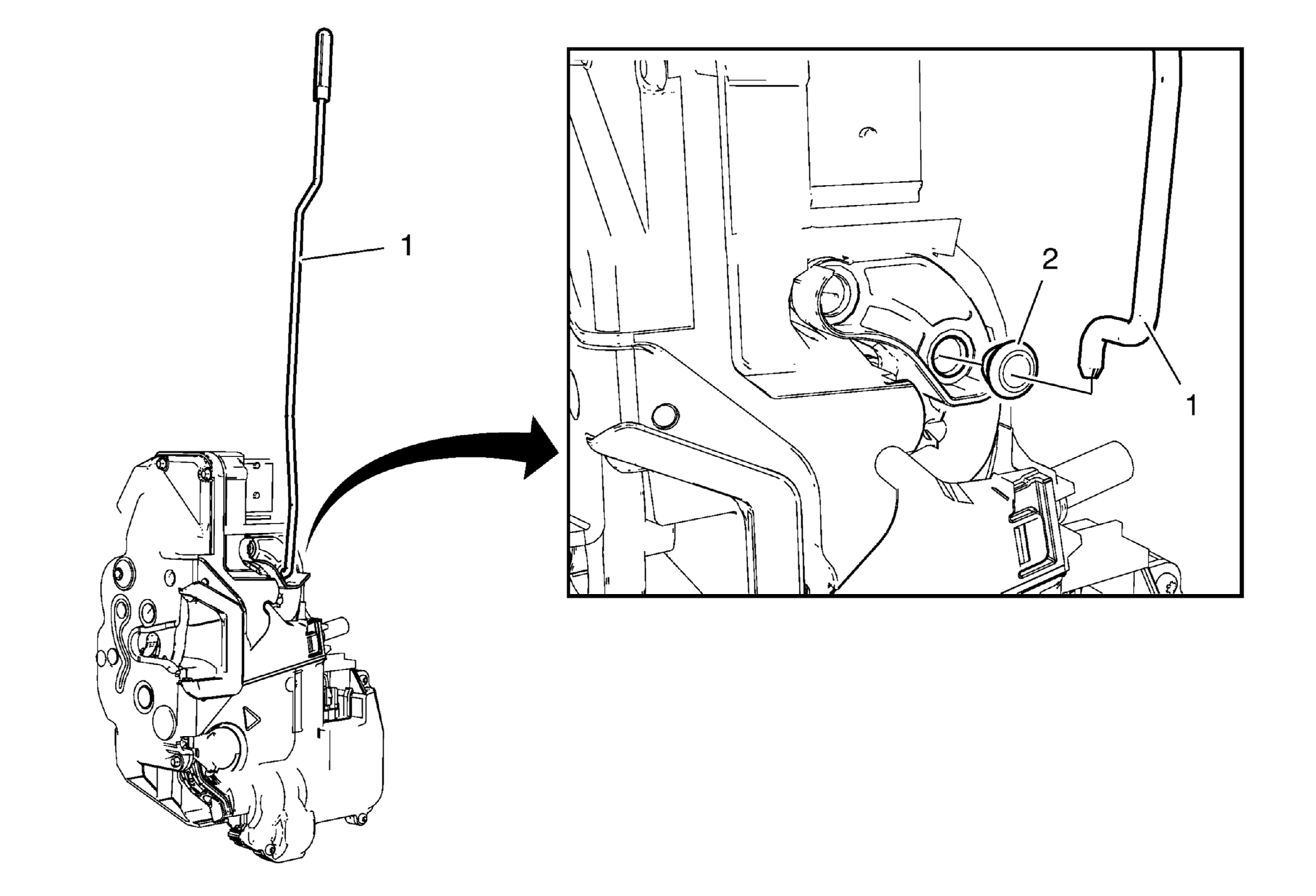

Fig 1: Rear Side Door Locking Rod & Clip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the front side door lock. Refer to Front Side Door Lock Replacement .
1	Front Side Door Lock Rod Procedure Inspect the lock, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment .
2	Front Side Door Locking Rod Clip

Callout

Component Name

Preliminary Procedures

Remove the interior trim panel. Refer to Front Side Door Trim Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the front side door lock. Refer to Front Side Door Lock Replacement .

Front Side Door Lock Rod
Procedure
Inspect the lock, lock cylinder and handle adjustments. Refer to Front Side Door Outside Handle Rod Adjustment .

Front Side Door Locking Rod Clip
