T10J Keyless Entry Antenna - Center Console Front (ATH)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

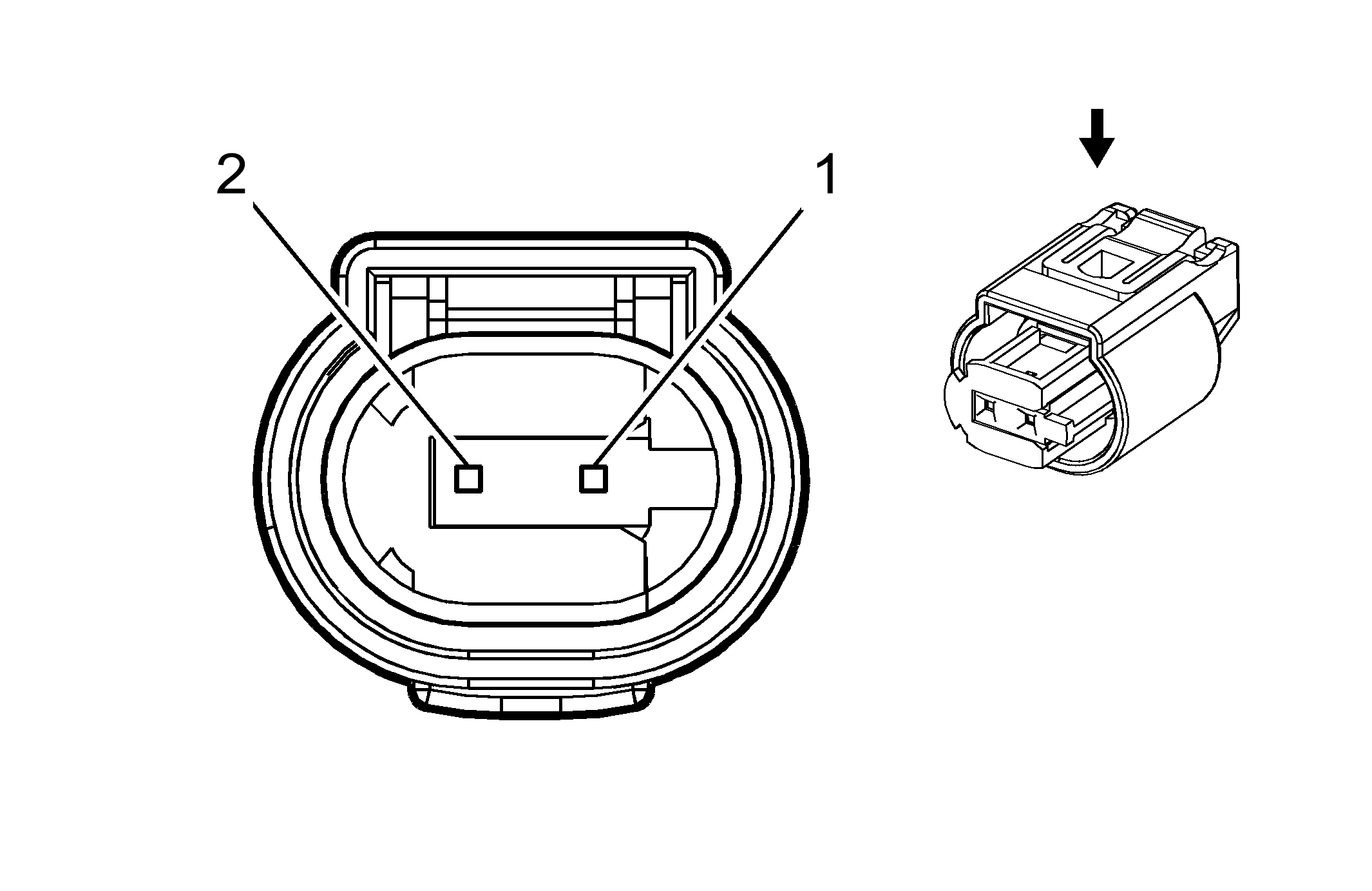

GM2469016
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 1-0967644-1
  • Service Connector: Pending
  • Description: 2-Way F MQS Series (BK)
 Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 962885-5/15
  • Core/Insulation Crimp: 6/6
T10J Keyless Entry Antenna - Center Console Front (ATH)

Pin Size Color Circuit Function Option
1 0.5 BN/BK 3552 Passive Start Interior Antenna 1 Signal Hi -
2 0.5 WH 3553 Passive Start Interior Antenna 1 Signal Lo -
