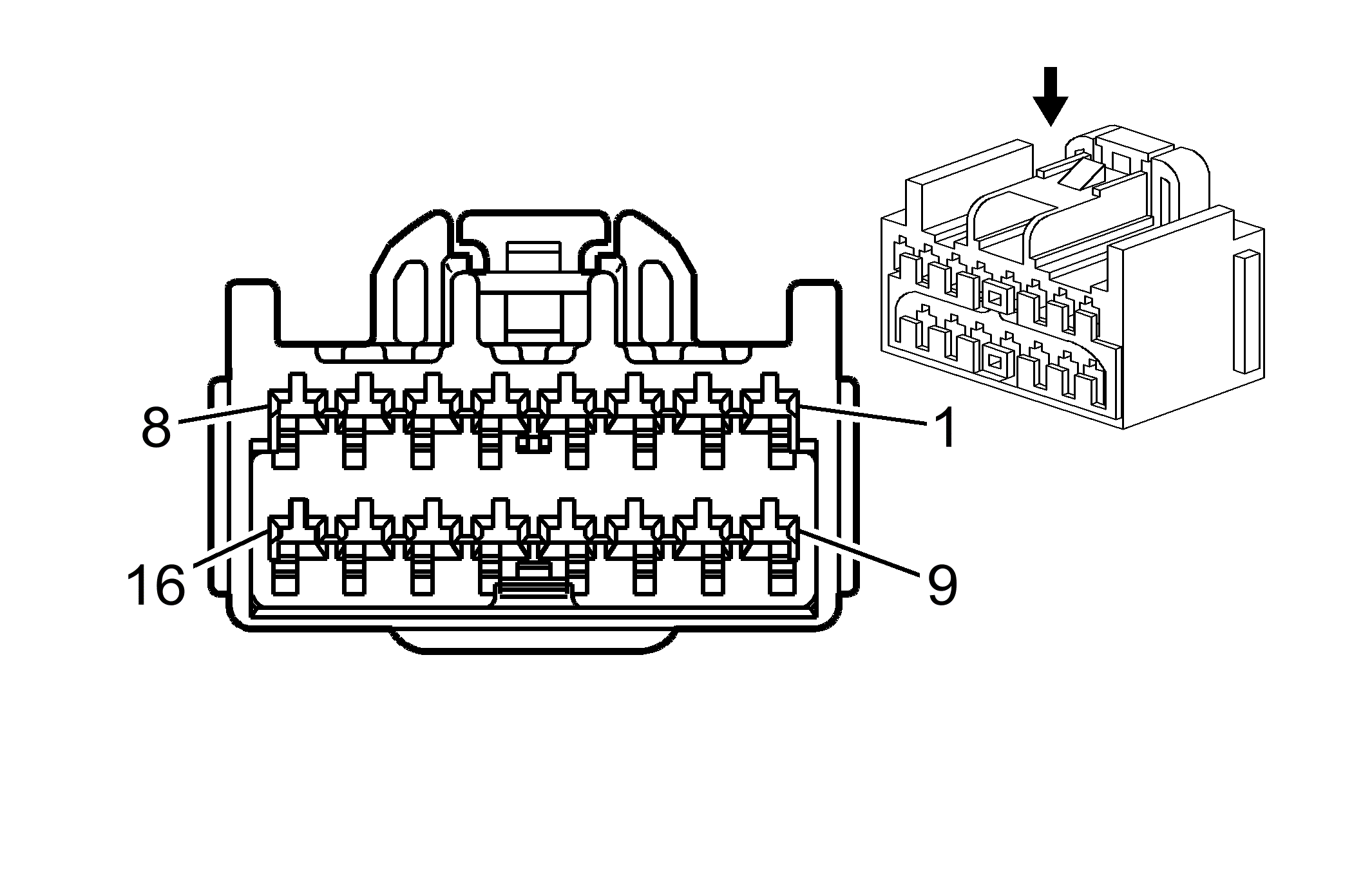

K29 Seat Heating Control Module X2 (KA1)
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
|
K29 Seat Heating Control Module X2 (KA1)
| Pin | Size | Color | Circuit | Function | Option |
|---|---|---|---|---|---|
| 1 | 0.5 | VT/BK | 2424 | Driver Heated Back Element Return | - |
| 2 | 1 | GY | 2480 | Passenger Heated Back Element Return | - |
| 3 | 0.5 | BN/VT | 2077 | Driver Heated Seat Element Control | - |
| 4 | - | - | - | Not Used | - |
| 5 | 1 | BN/BU | 2479 | Passenger Heated Seat Element Control | - |
| 6-12 | - | - | - | Not Used | - |
| 13 | 0.5 | BK/YE | 2080 | Driver Heated Seat NTC Low Reference | - |
| 14 | 0.5 | BK/GY | 2435 | Passenger Heated Seat NTC Low Reference | - |
| 15-16 | - | - | - | Not Used | - |
