K29 Seat Heating Control Module X1 (KA1)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

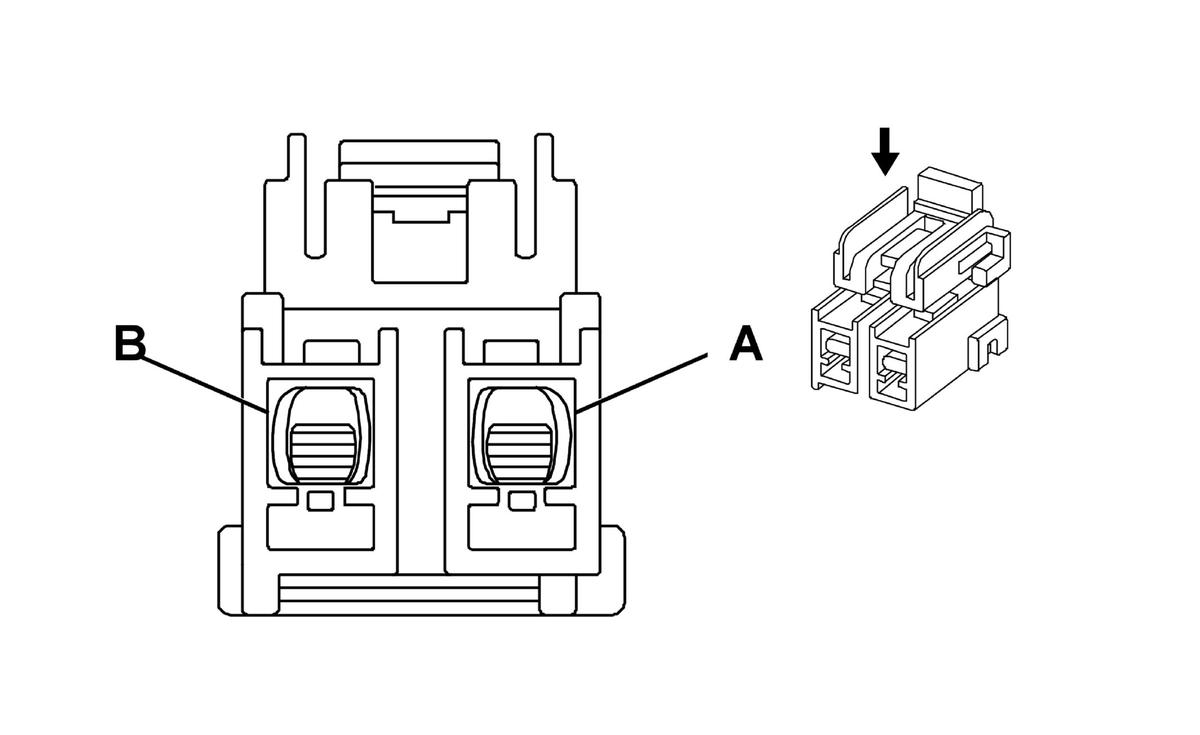

GM2231659
Connector Part Information
  • Harness Type: Driver Seat
  • OEM Connector: 88988990
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F Metri-Pack 280 Series (BK)
 Terminal Part Information
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: Service by Harness- See Part Catalog
  • Core/Insulation Crimp: Not Available
K29 Seat Heating Control Module X1 (KA1)

Pin Size Color Circuit Function Option
A 2.5 BK 2150 Ground -
B 2.5 RD/GY 1740 Battery Positive Voltage -
