Center Speaker and Subwoofers (UQA)
Center Speaker and Subwoofers (UQA)
WARNING:
This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

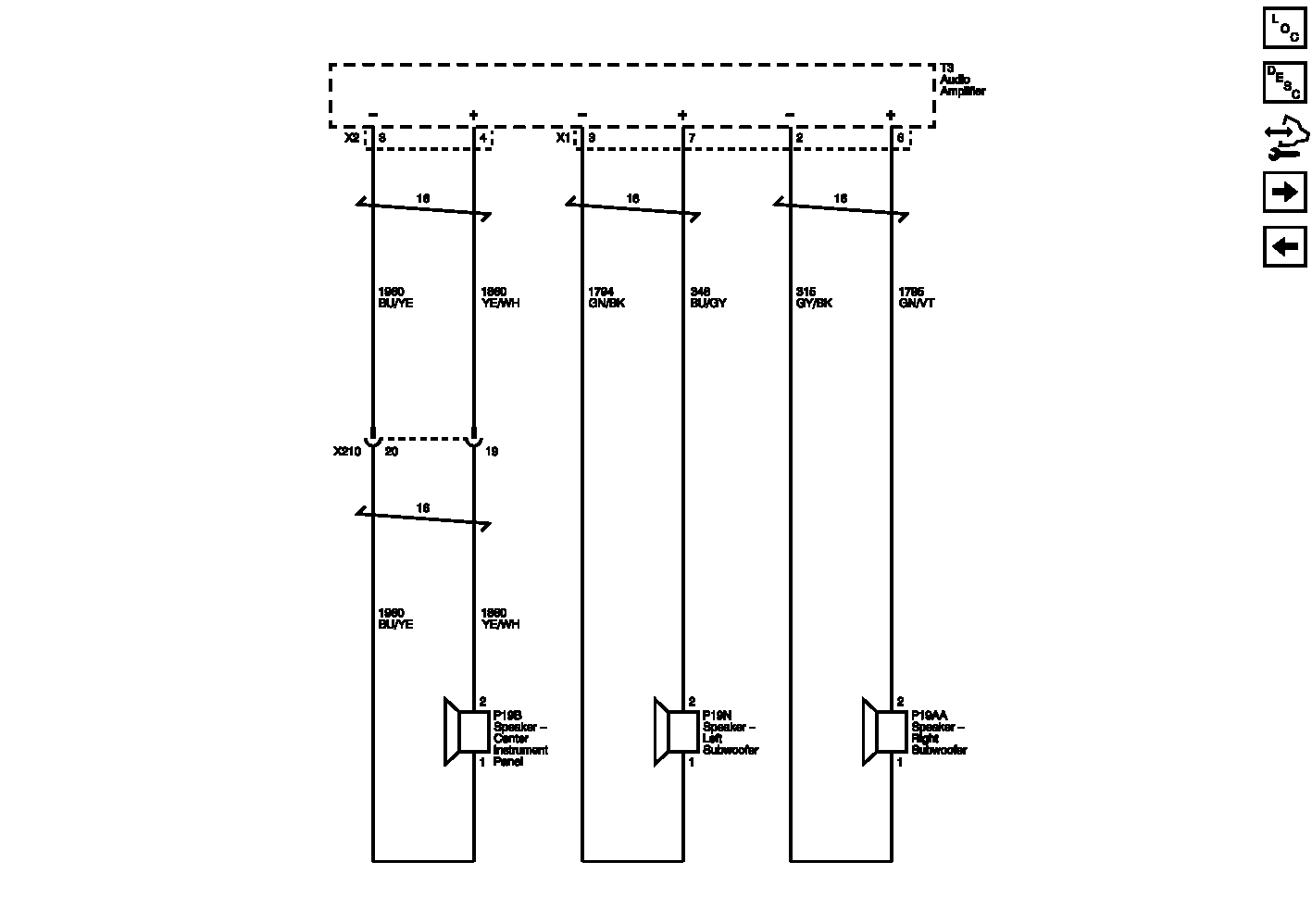

Fig 1: Center Speaker And Subwoofers (UQA) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
