OnStar Schematics: Antenna

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

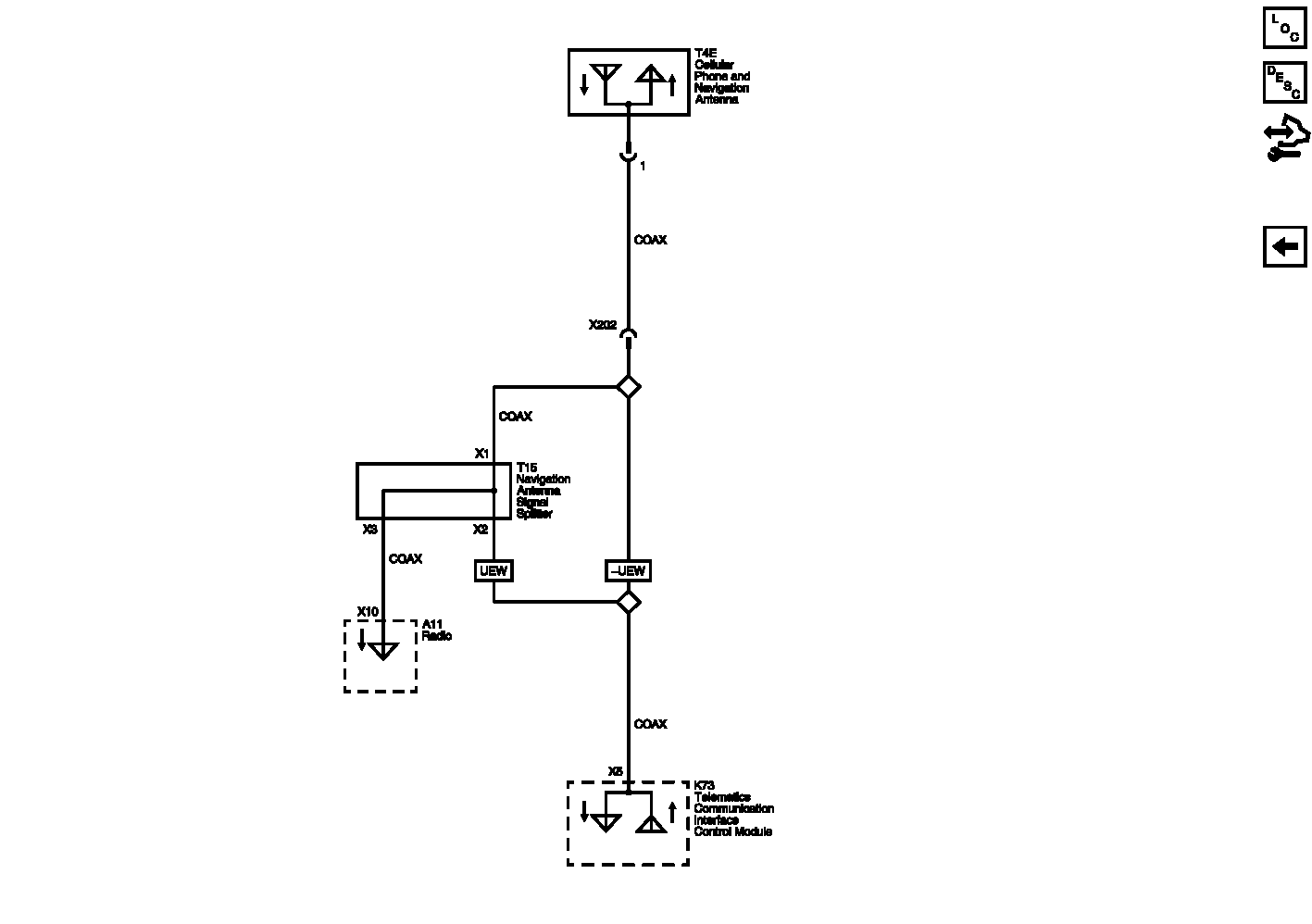

Fig 1: Antenna Wiring Schematic
GM2689665Courtesy of GENERAL MOTORS COMPANY
