USB Receptacle Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

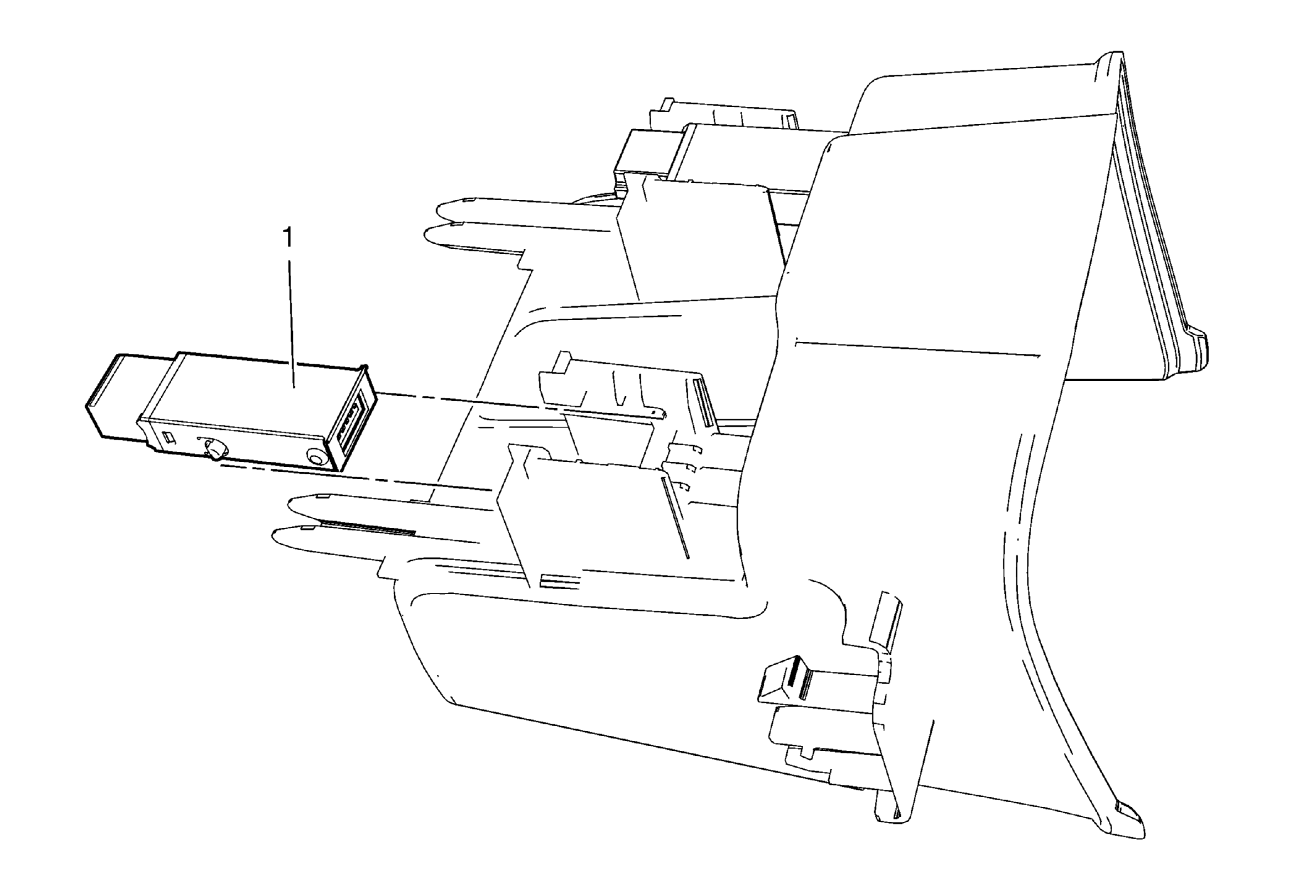

Fig 1: USB Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove instrument panel lower center compartment. Refer to Instrument Panel Lower Center Compartment Replacement .
1	USB Receptacle Procedure Disconnect the electrical connector. Unclip two times from instrument panel lower compartment.

Callout

Component Name

Preliminary Procedures
Remove instrument panel lower center compartment. Refer to Instrument Panel Lower Center Compartment Replacement .

USB Receptacle

Procedure

Disconnect the electrical connector.
Unclip two times from instrument panel lower compartment.
