Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

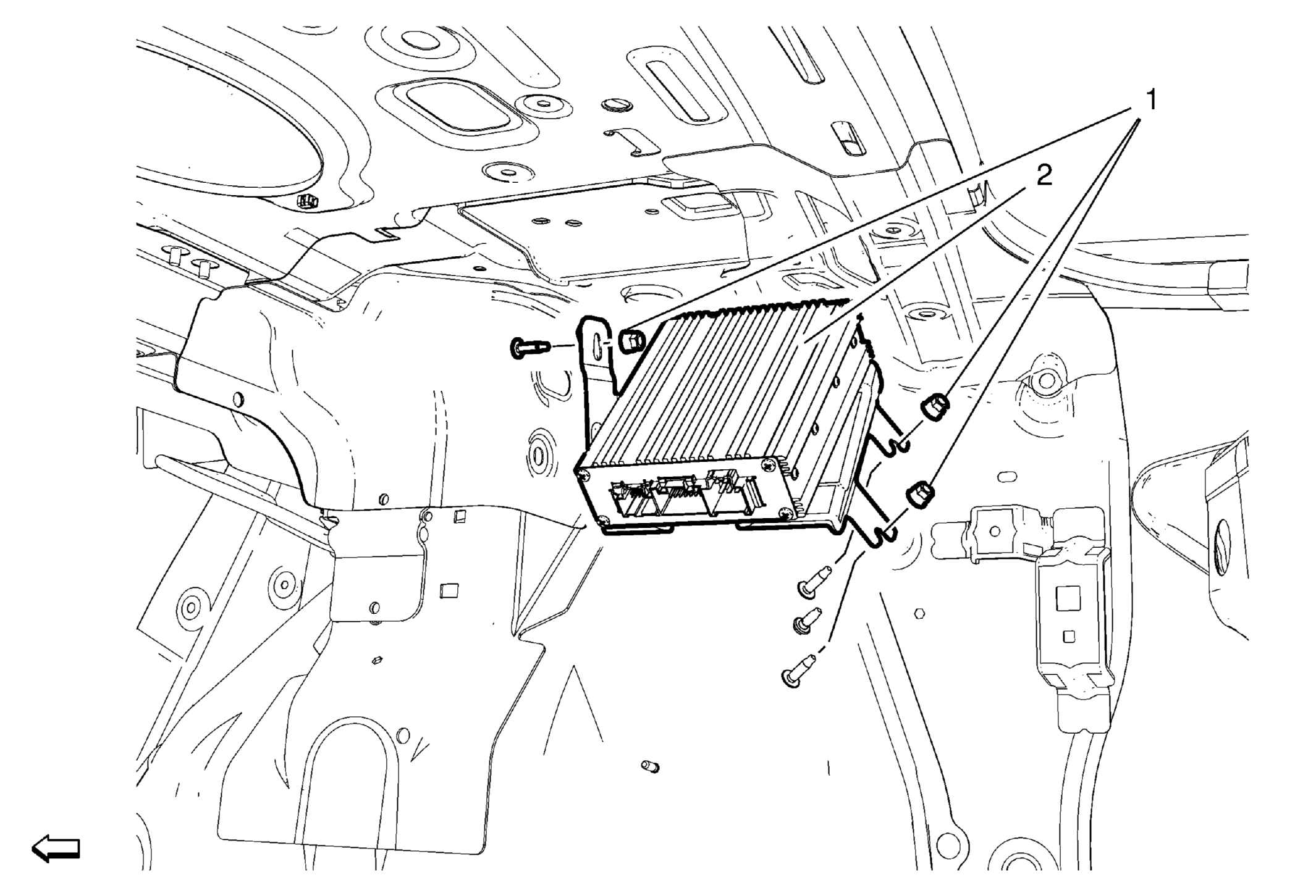

Fig 1: Radio Speaker Amplifier & Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side .
1	Radio Speaker Amplifier Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m(80 lb in)
2	Radio Speaker Amplifier. Procedure Disconnect electrical components. After repairs, refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Disconnect negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side .

Radio Speaker Amplifier Nuts (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m(80 lb in)

Radio Speaker Amplifier.

Procedure

Disconnect electrical components.
After repairs, refer to Control Module References .
