Radio Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

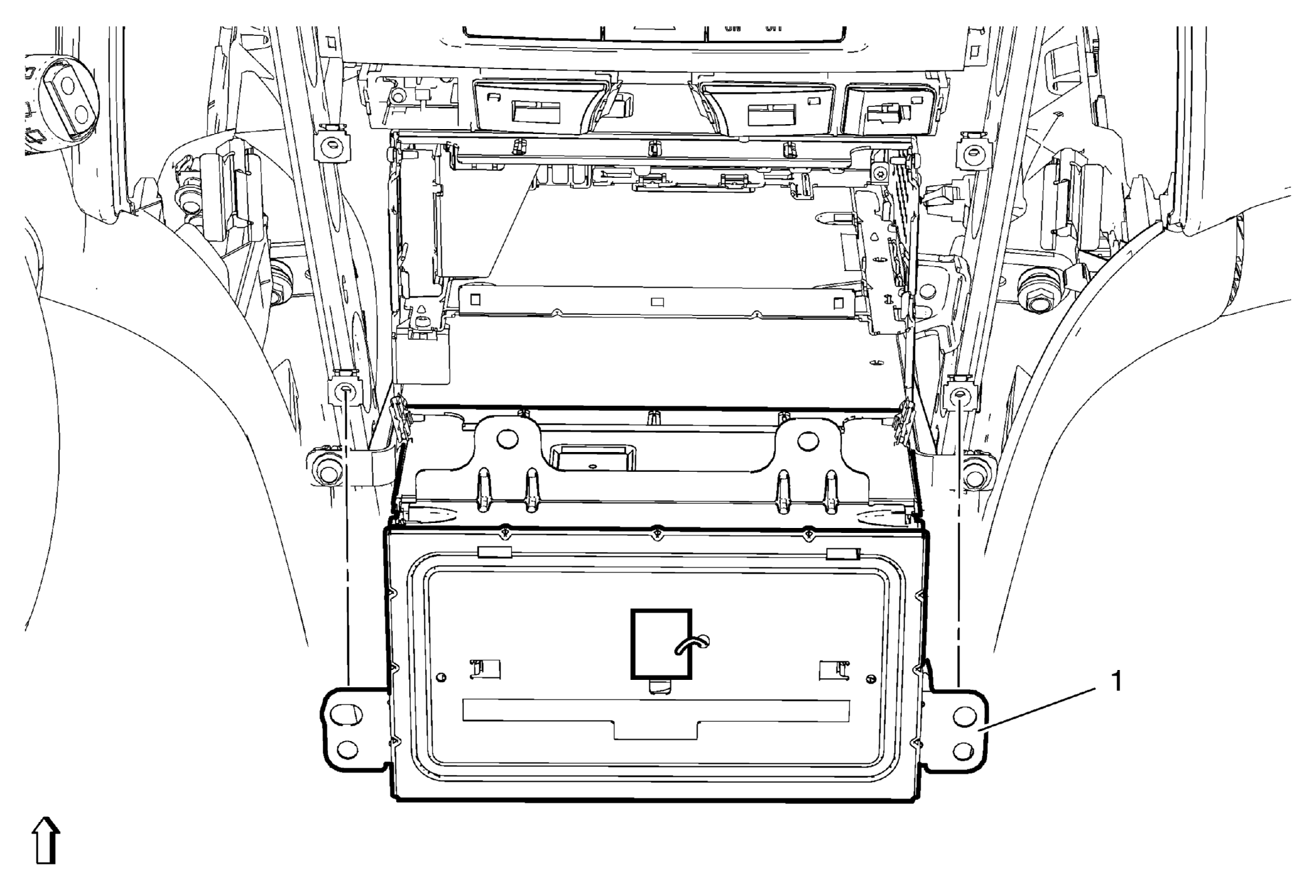

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Radio Replacement

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the radio control assembly. Refer to Radio Control Assembly Replacement . Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
1	Radio Procedure Disconnect electrical components. After repairs, refer to Control Module References for programming and set up information. NOTE: The center of the radio assembly may have a mounted bluetooth antenna. Do not touch or apply any pressure to the bluetooth antenna during removal or install.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .

Radio

Procedure

Disconnect electrical components.
After repairs, refer to Control Module References for programming and set up information.

NOTE:

The center of the radio assembly may have a mounted bluetooth antenna. Do not touch or apply any pressure to the bluetooth antenna during removal or install.
