Radio Front Speaker Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

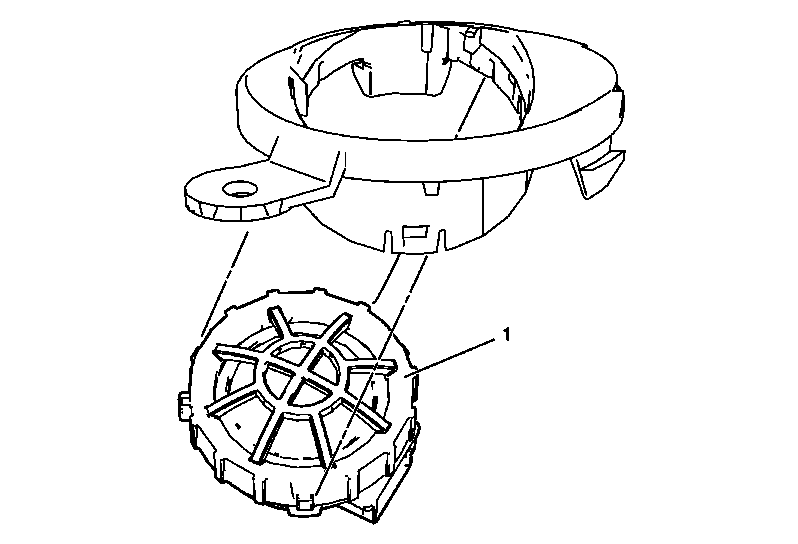

Fig 1: Radio Front Speaker
GM2189480Courtesy of GENERAL MOTORS COMPANY
Radio Front Speaker Replacement

Callout Component Name
Preliminary Procedure
Remove the radio front side door upper speaker bracket. Refer to Radio Front Side Door Upper Speaker Bracket Replacement .
1 Radio Front Speaker

Procedure

  1. Disconnect electrical connector.
  2. Unclip the three integral retainers from the radio front side door upper speaker bracket.
