Radio Antenna Base Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

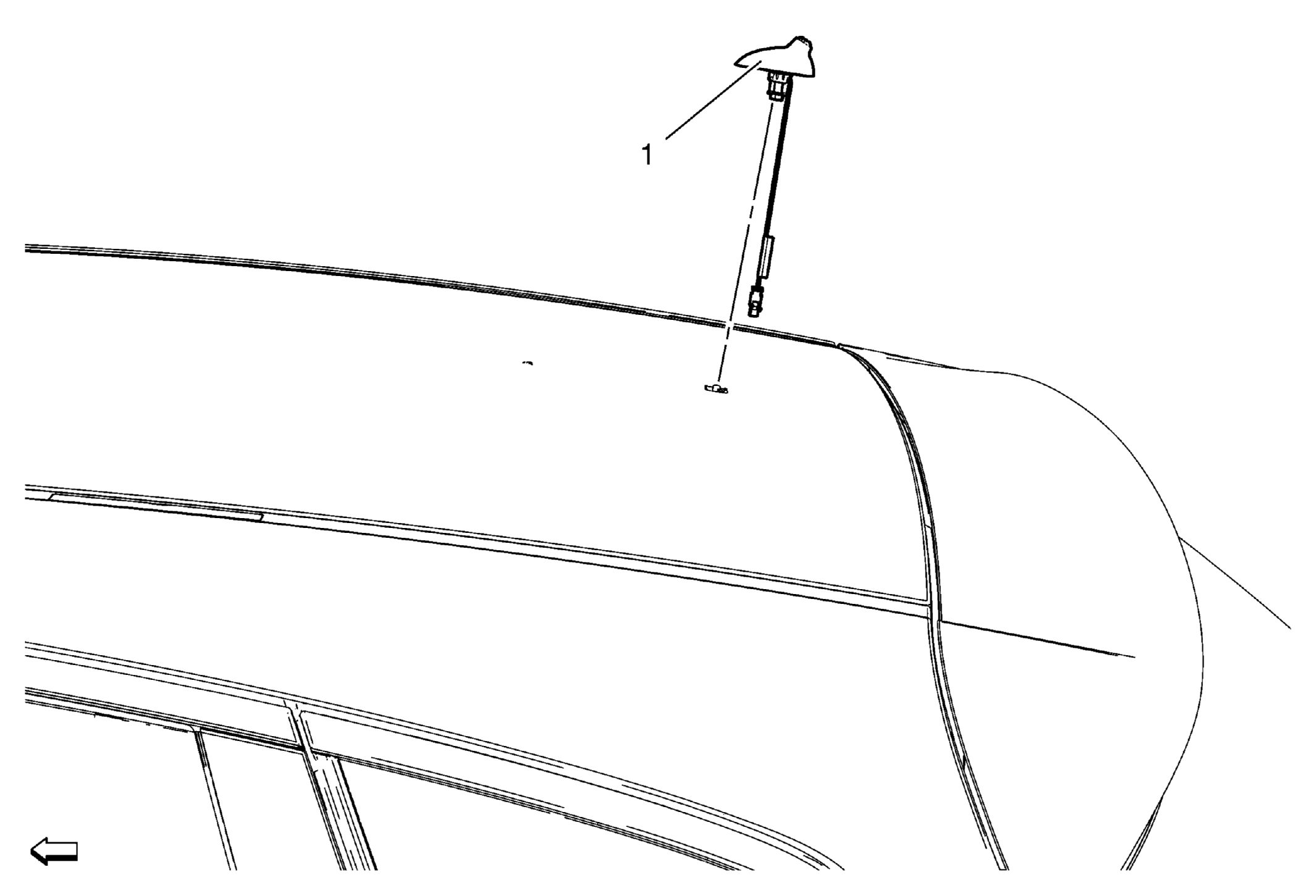

Fig 1: Radio Antenna Base

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the body lock pillar trim panel. Refer to Body Lock Pillar Trim Panel Replacement (without Roof Side Rail Airbag) , Body Lock Pillar Trim Panel Replacement (with Roof Side Rail Airbag) . Remove the assist handle. Refer to Assist Handle Replacement . Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) .
1	Radio Antenna Base CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Use a new retainer. Tighten 9 N.m (80 lb in)

Callout

Component Name

Preliminary Procedures

Remove the body lock pillar trim panel. Refer to Body Lock Pillar Trim Panel Replacement (without Roof Side Rail Airbag) , Body Lock Pillar Trim Panel Replacement (with Roof Side Rail Airbag) .
Remove the assist handle. Refer to Assist Handle Replacement .
Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) .

Radio Antenna Base

CAUTION:

Refer to Fastener Caution .

Procedure

Disconnect the electrical connector.
Use a new retainer.
Tighten

9 N.m (80 lb in)
