Driver or Passenger Seat Side Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

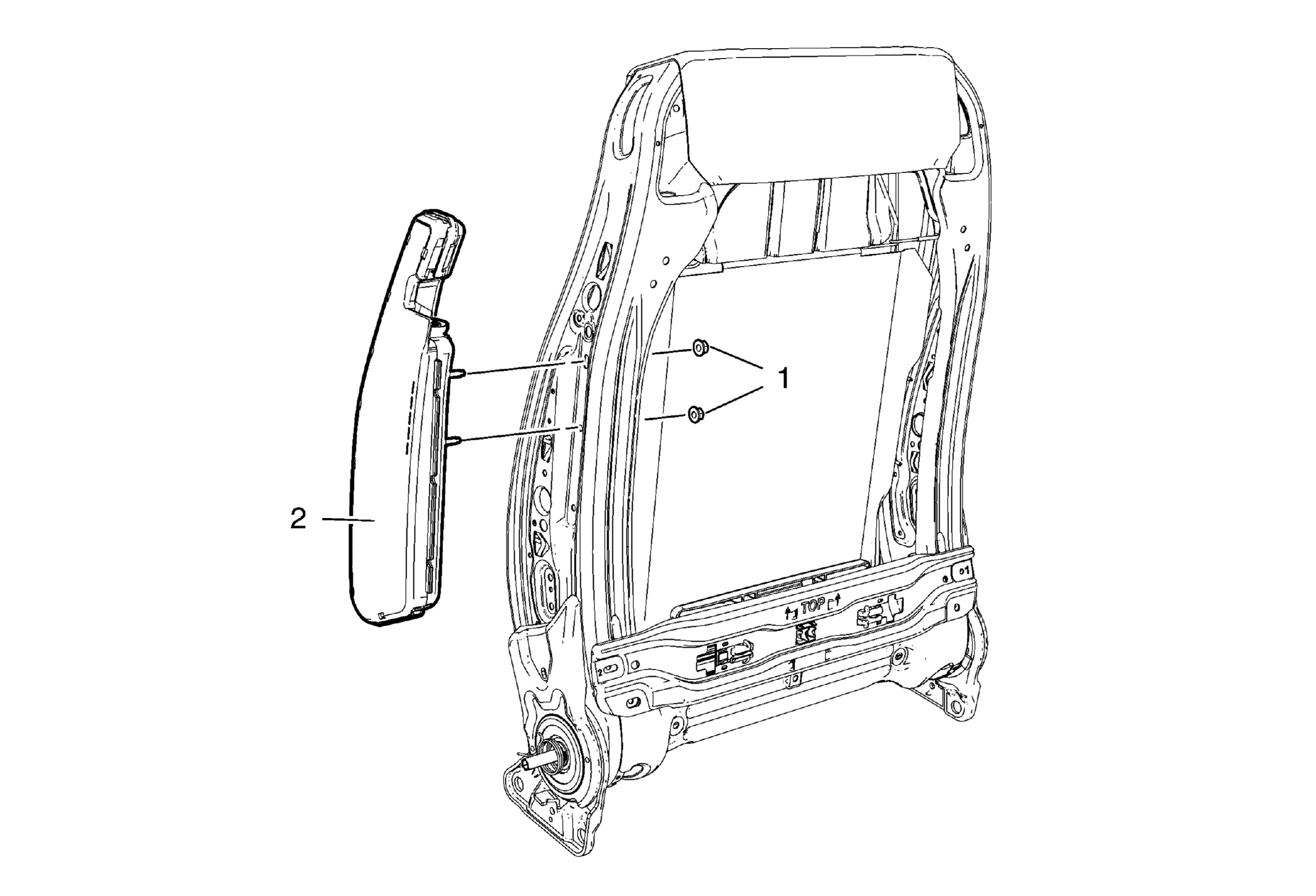

Fig 1: Driver or Passenger Seat Side Inflatable Restraint Module
GM2191342Courtesy of GENERAL MOTORS COMPANY
Driver or Passenger Seat Side Inflatable Restraint Module Replacement

Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedures Remove the front seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .
1 Inflatable Restraint Front Seat Side Module Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
3.75 N.m (33 lb in)
2 Front Seat Side Inflatable Restraint Module
Procedure
Disconnect the electrical connector.
