Air Inlet Grille Panel Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

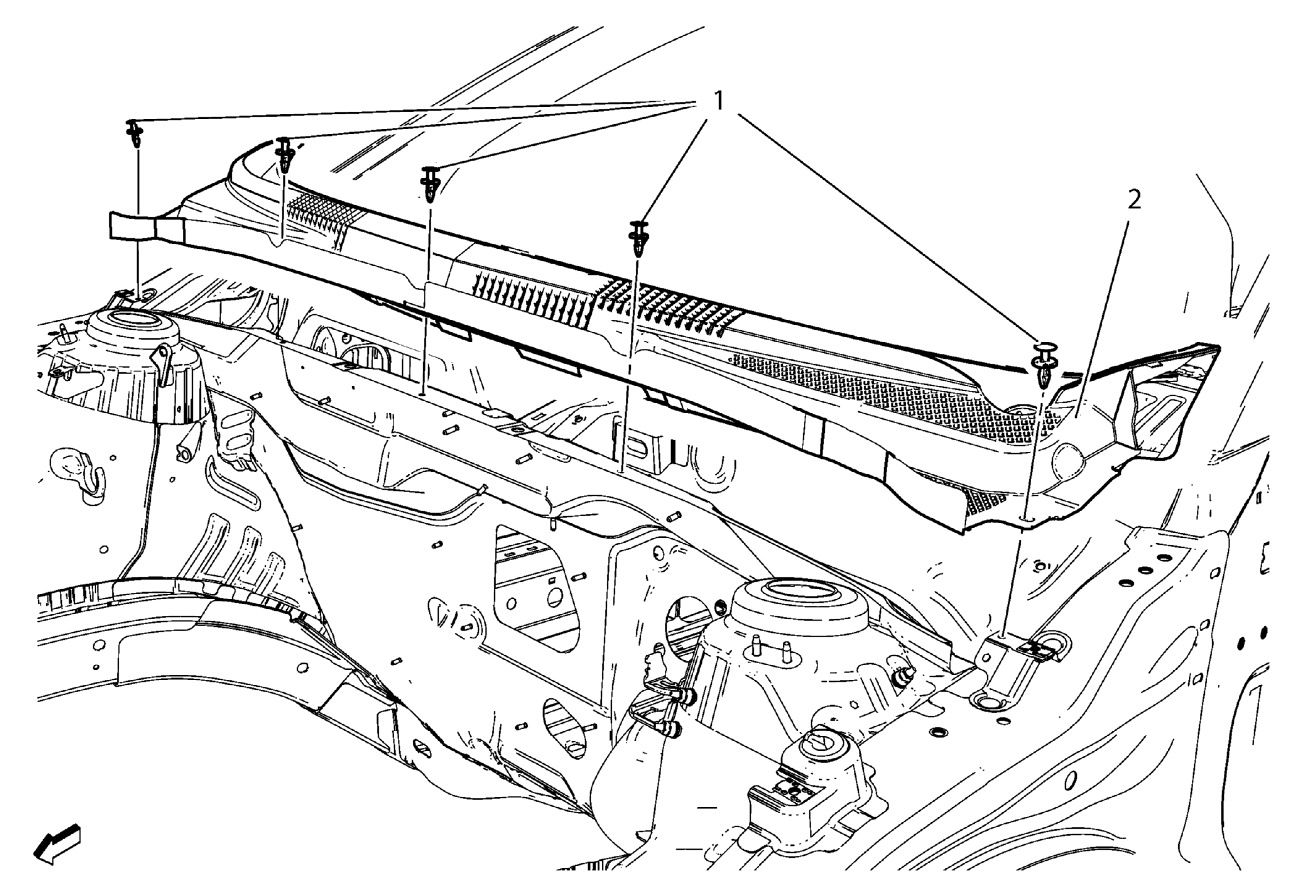

Fig 1: Air Inlet Grille Panel And Clips

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the wiper arms. Refer to Windshield Wiper Arm Replacement . Remove hood rear weatherstrip. Refer to Hood Rear Weatherstrip Replacement .
1	Air Inlet Grille Panel Clip (Qty: 5)
2	Air Inlet Grille Panel Assembly

Callout

Component Name

Preliminary Procedures

Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
Remove hood rear weatherstrip. Refer to Hood Rear Weatherstrip Replacement .

Air Inlet Grille Panel Clip (Qty: 5)

Air Inlet Grille Panel Assembly
