Rocker Arm Assembly Removal

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft sprocket (see INSTALLATION ).
Loosen the rocker arm adjusting screws (A).

Fig 1: Identifying Rocker Arm Adjusting Screws
Remove the camshaft holder bolts. To prevent damaging the camshaft, loosen the bolts in sequence two turns at a time, in a crisscross pattern.

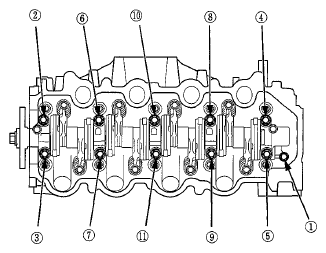

Fig 2: Identifying Camshaft Holder Bolts Removing Sequence
Remove the rocker arm assembly.

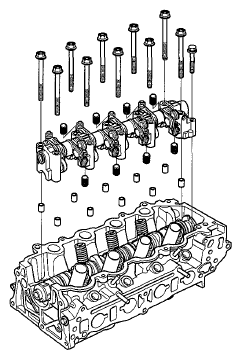

Fig 3: Identifying Rocker Arm Assembly With Bolts
