Linear Interconnect Network (LIN)

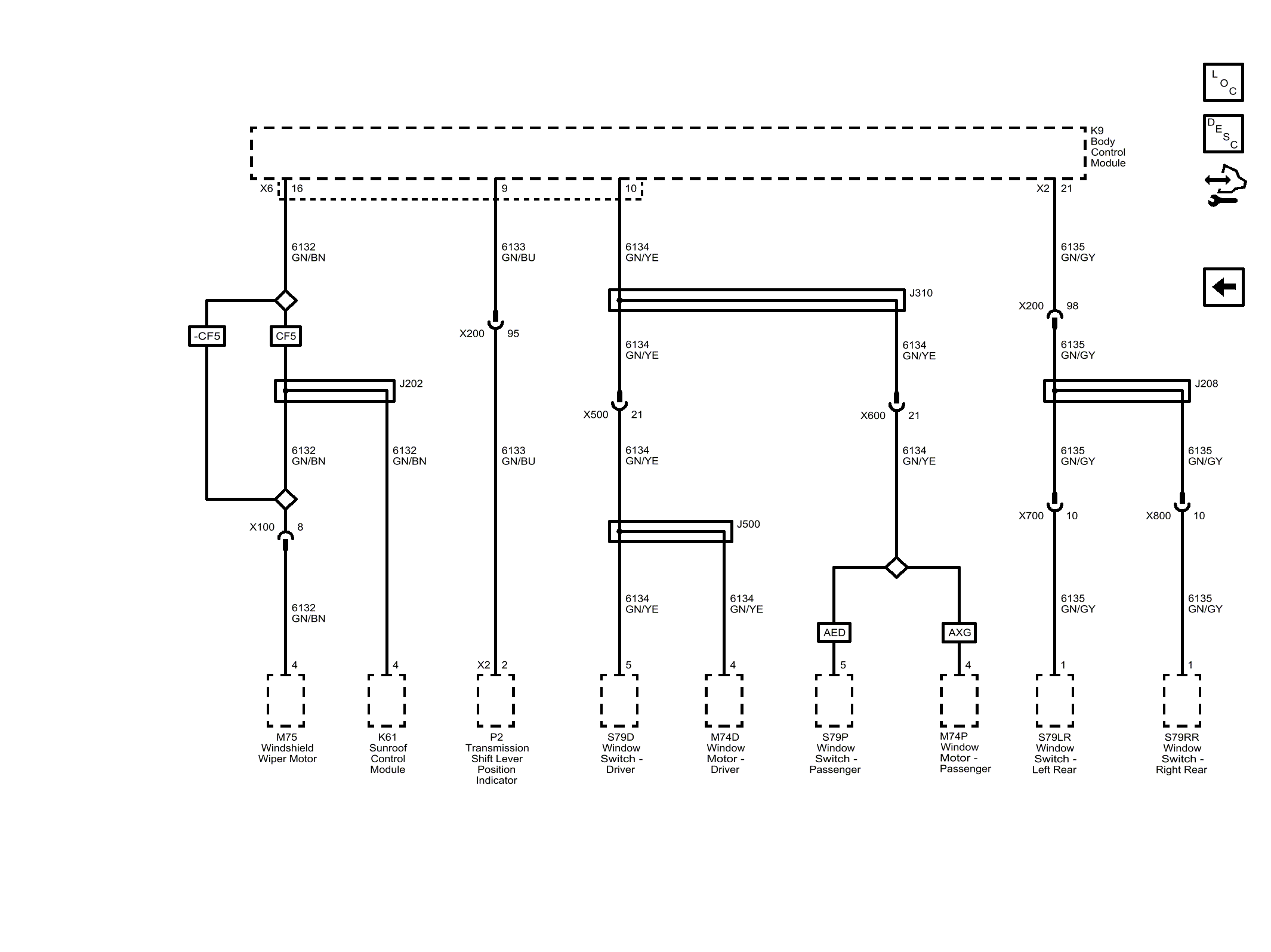

Fig 1: Linear Interconnect Network Wiring Schematic (LIN)

GM2852674

Courtesy of GENERAL MOTORS COMPANY
