High Speed Bus 1

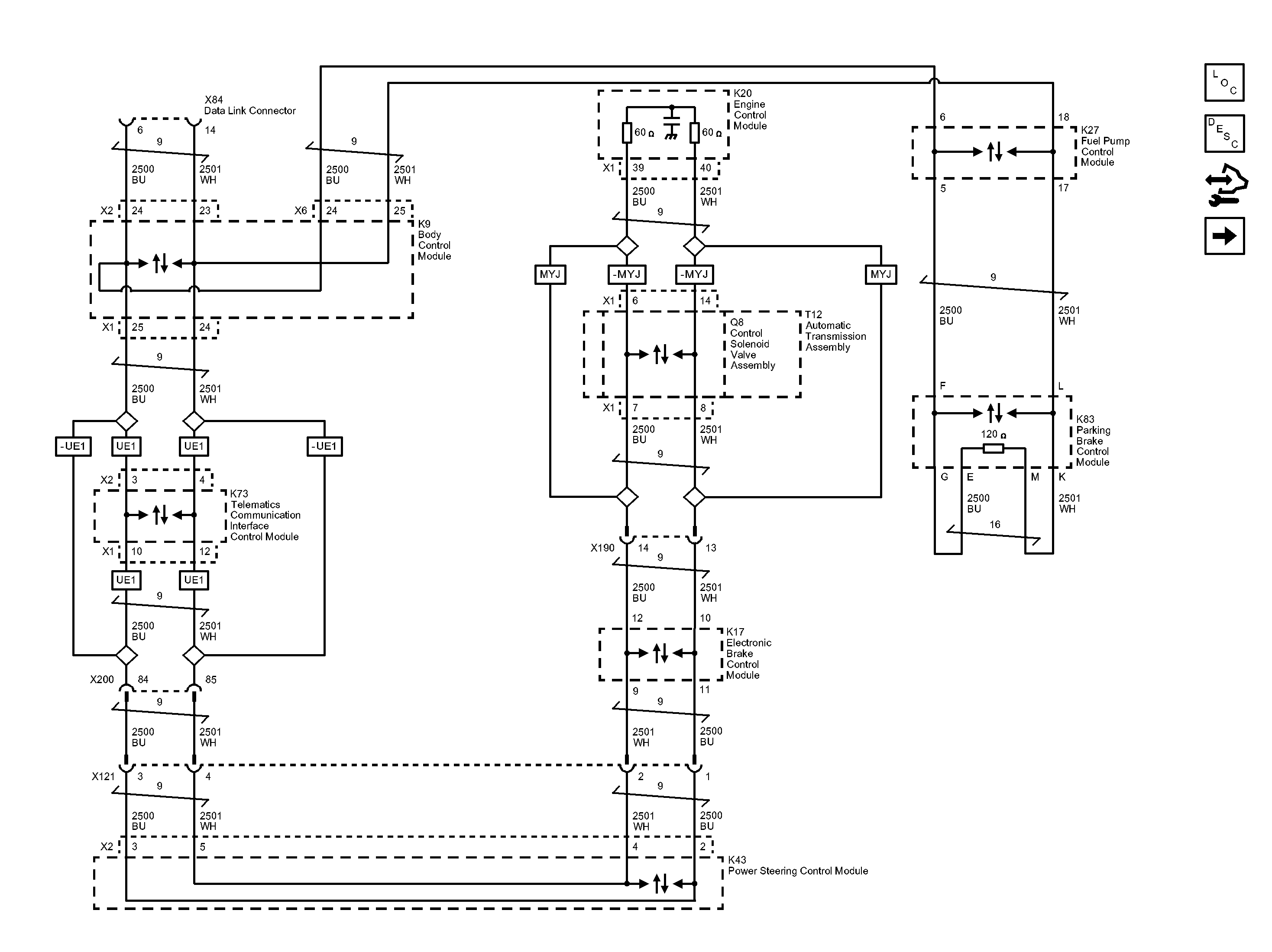

Fig 1: High Speed Bus 1 Wiring Schematic
GM2852662Courtesy of GENERAL MOTORS COMPANY
