Power, Ground and Subsystem References (1 of 4)
Power, Ground and Subsystem References (1 of 4)

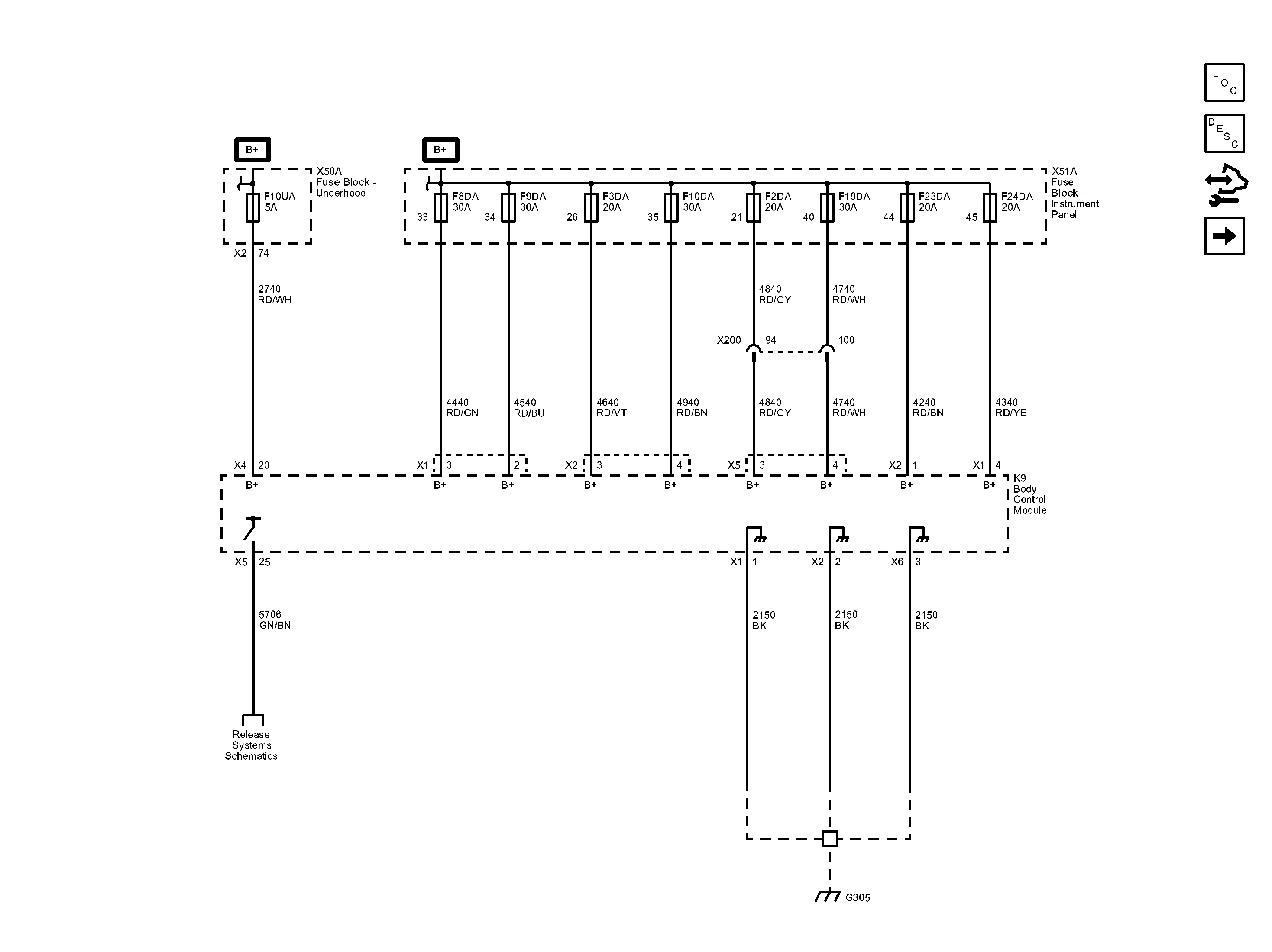

Fig 1: Power, Ground and Subsystem References Wiring Schematic (1 of 4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
