Stability Control

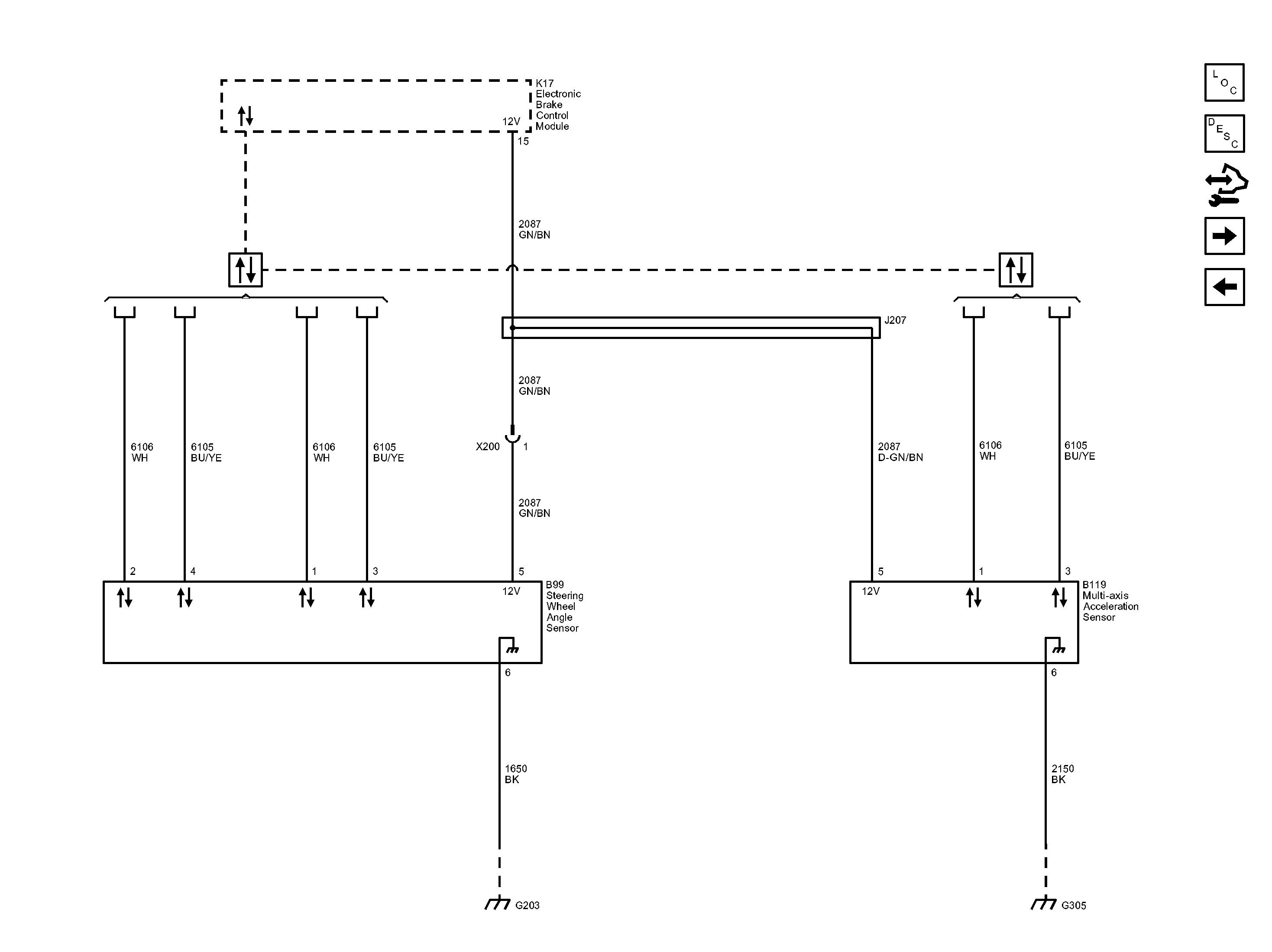

Fig 1: Stability Control Wiring Schematic

GM2852381

Courtesy of GENERAL MOTORS COMPANY
