Moveable Window Wiring Schematics: Driver

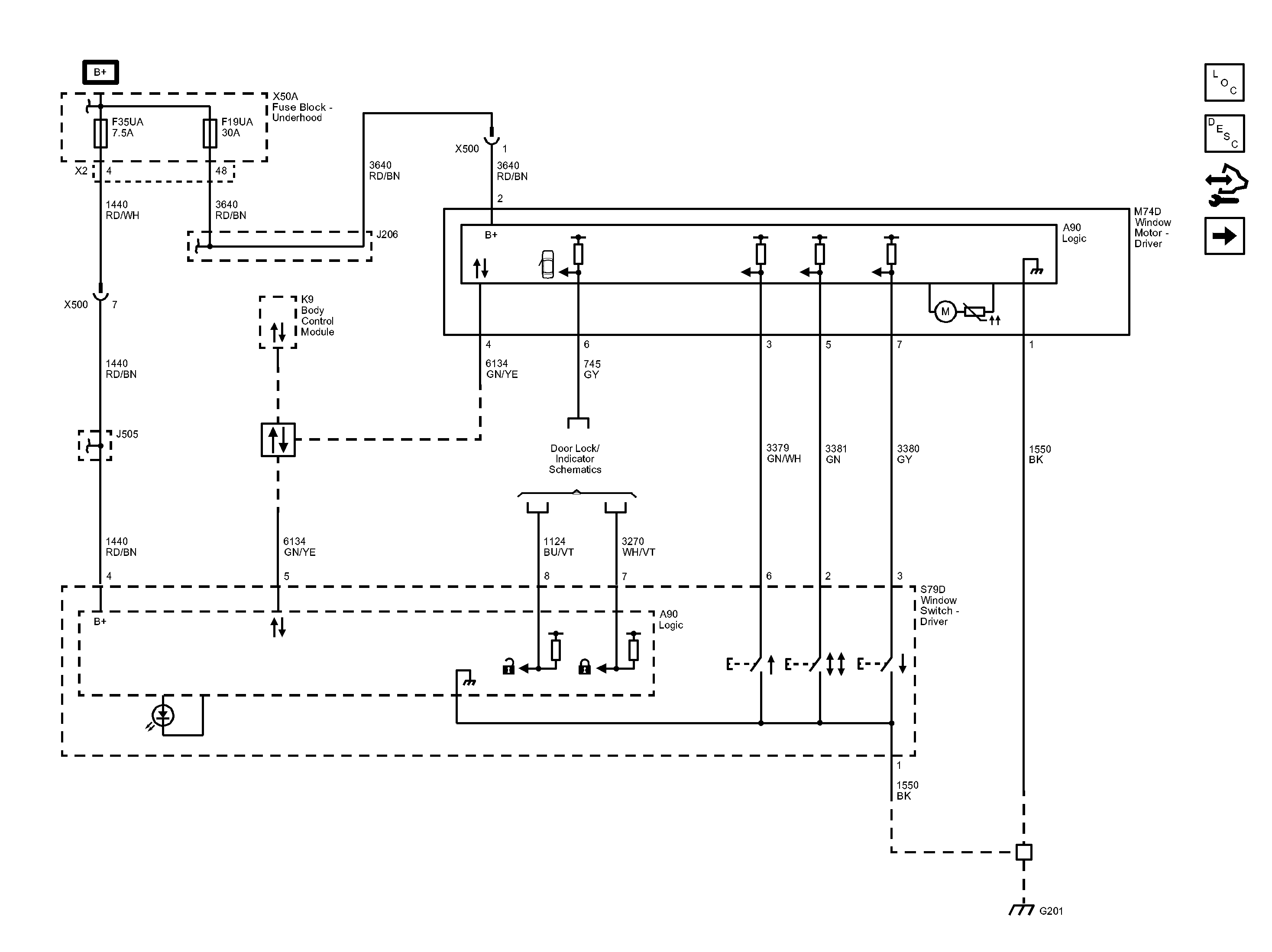

Fig 1: Moveable Window Wiring Schematic - Driver

GM2851785

Courtesy of GENERAL MOTORS COMPANY
