Removal Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
    2. Fig 1: Battery Fuse Box Cover
    GM2577153Courtesy of GENERAL MOTORS COMPANY
  2. Unlock the retaining tab (1) on the battery fuse box cover.
  3. Use a suitable screwdriver (2) to unlock the clip (4) through the window (3).
    4. Fig 2: View Of Fuse Box Cover, Battery Cable And Nut
    GM2027594Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pull the battery fuse box housing. DO NOT pull the flap.

  4. Open the battery fuse box cover (1).
  5. Remove the positive battery cable to starter from the battery.

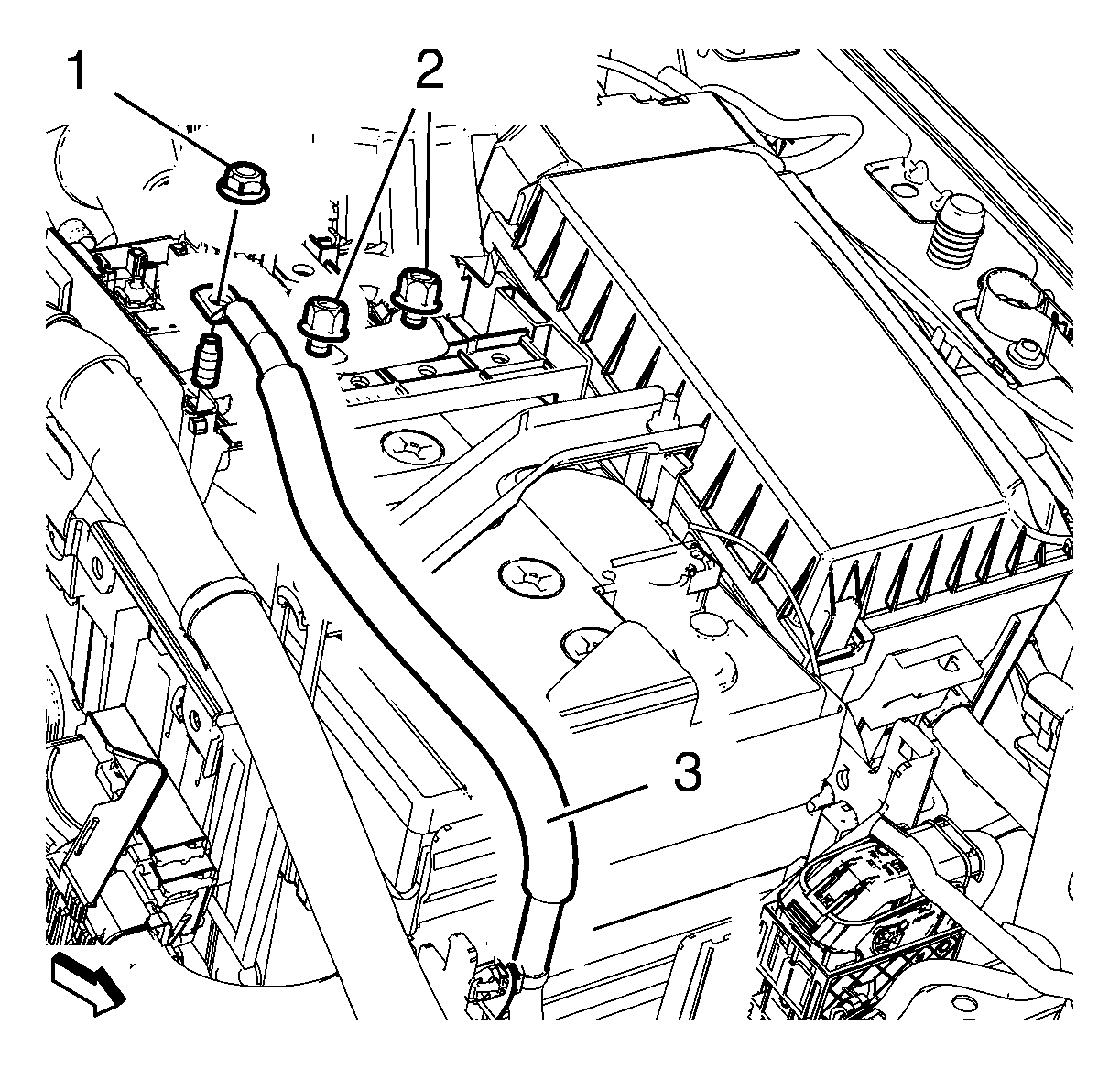

    6. Fig 3: Starter Generator Cable & Nuts
    GM2191324Courtesy of GENERAL MOTORS COMPANY
  6. Remove the starter generator cable (3) and starter generator cable nut (1).
  7. Loosen the 2 fuse block mounting panel nut (2).

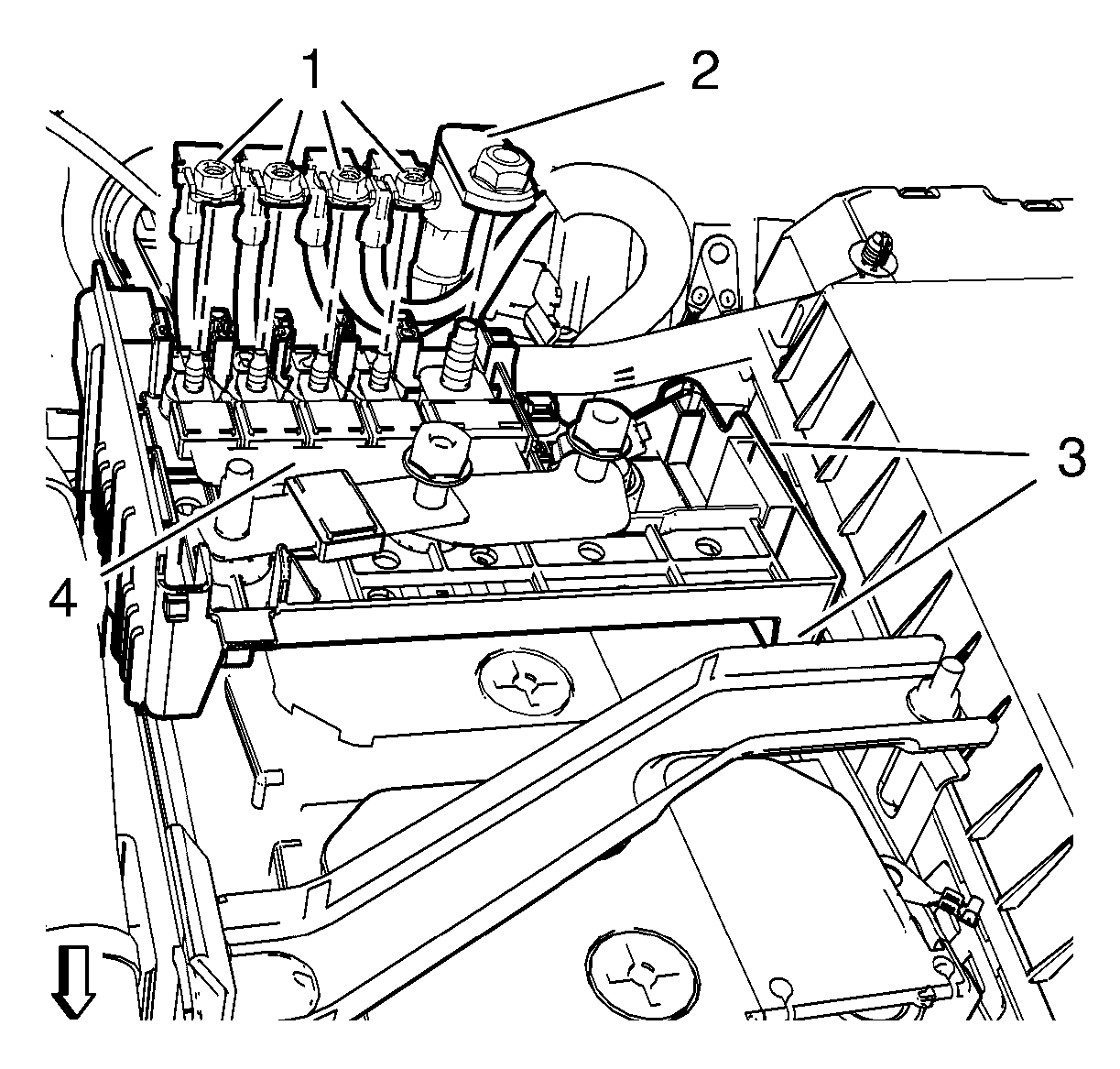

    8. Fig 4: Fuse Block, Cable Nut, Body Wiring Harness Nuts & Retaining Tabs
    GM2191882Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Due to various option content there might be 2 or 4 body wiring harness nuts installed.

  8. Remove body wiring harness nuts (1) and front compartment fuse block cable nut (2).
  9. Unlock retaining tabs (3) and remove fuse block (4) with integrated positive battery cable.
