Removal Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove the front compartment fuse block cover. Refer to Front Compartment Fuse Block Cover Replacement
    3. Fig 1: Front Compartment Fuse Block Housing Cover & Nuts
    GM2191905Courtesy of GENERAL MOTORS COMPANY
  3. Open the front compartment fuse block housing cover (1) and remove the 3 power steering wiring harness nut (2) .

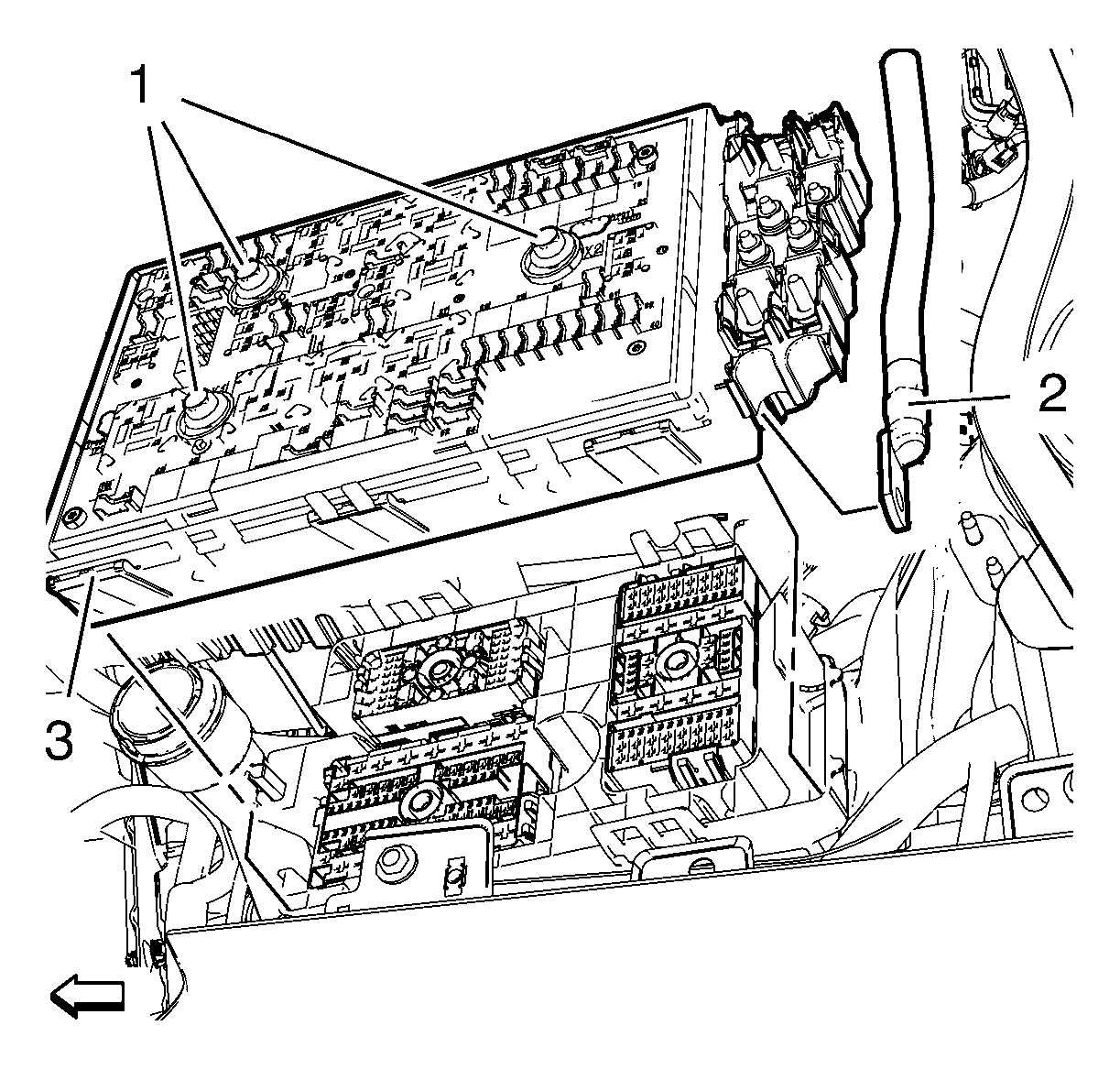

    4. Fig 2: View Of Front Compartment Fuse Block, Wiring Harness Supply And Fuse Block Bolt
    GM2191906Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Bolts (1) are encapsulated on the end of threads so that they can not be removed from the fuse block.

  4. Remove the 3 front compartment fuse block bolt (1) and the front compartment fuse block wiring harness supply (2).
  5. Unlock retaining tabs and remove the front compartment fuse block (3).
