Repair Instructions
>>
Front Compartment Fuse Block Cover Replacement
Front Compartment Fuse Block Cover Replacement

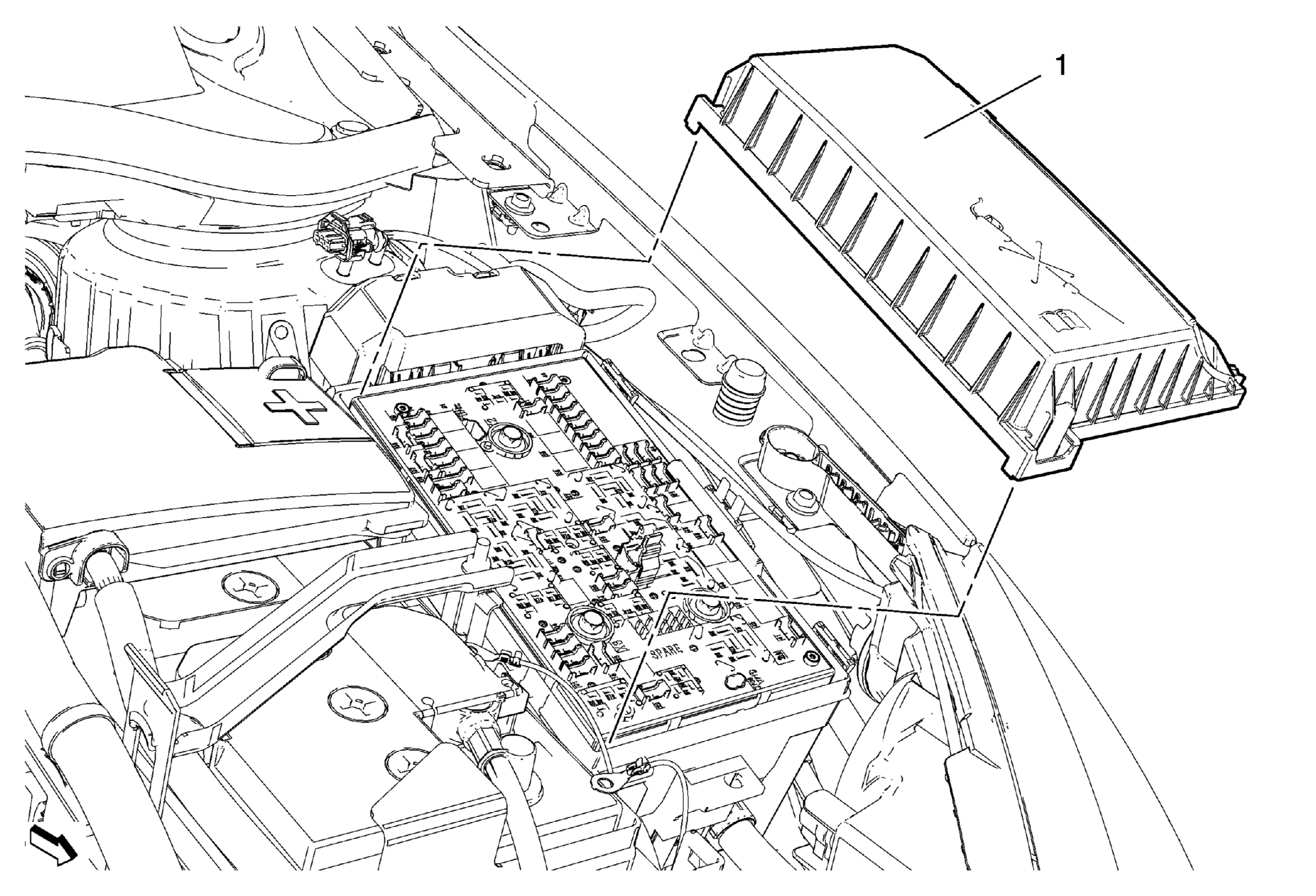

Fig 1: Identifying Front Compartment Fuse Block Cover
Courtesy of GENERAL MOTORS COMPANY
Front Compartment Fuse Block Cover Replacement
Callout
Component Name
1
Front Compartment Fuse Block Cover
Procedure
Squeeze 3 tabs to release cover.
Courtesy of GENERAL MOTORS COMPANY
