Theft Deterrent Module Replacement (without BTM)
Theft Deterrent Module Replacement (without BTM)

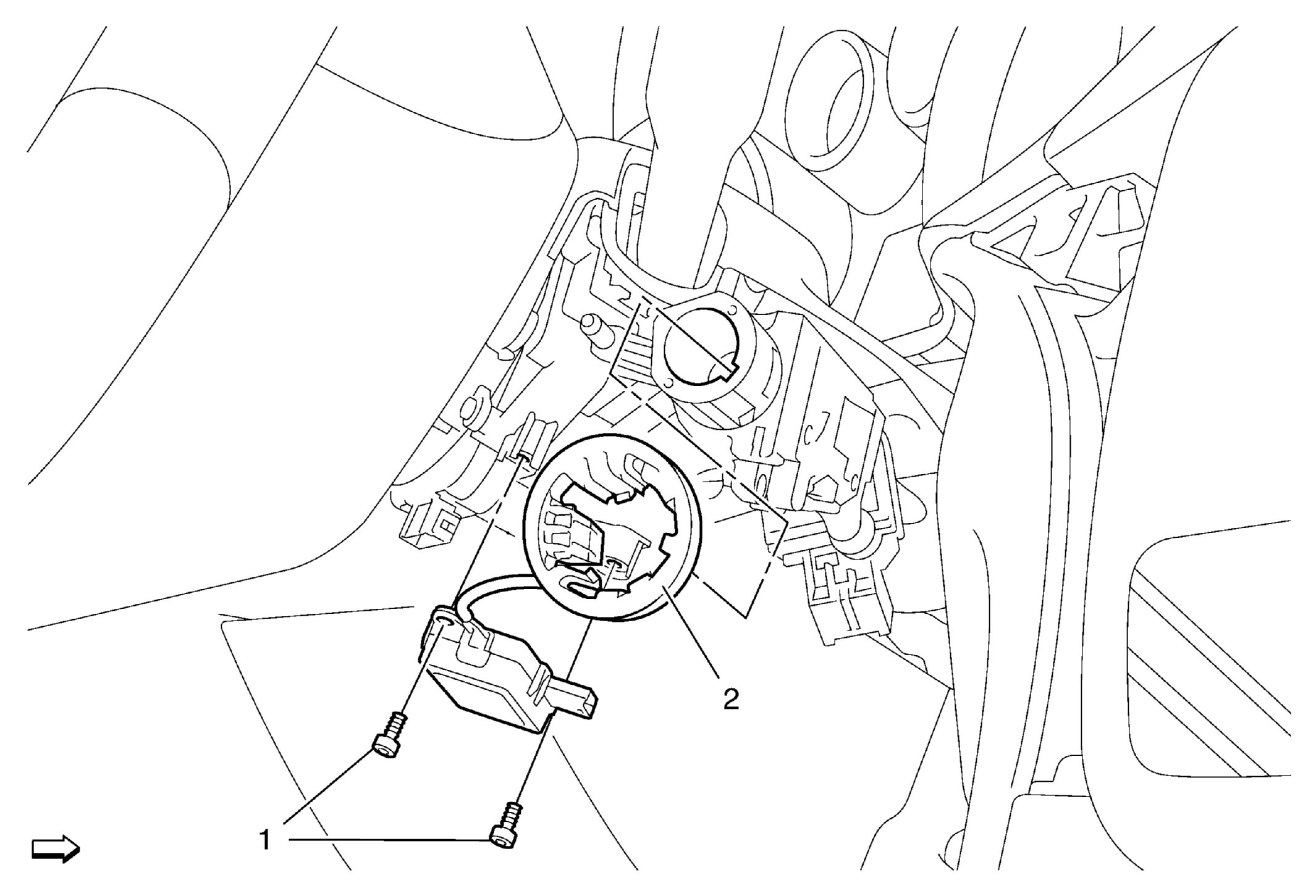

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement . |
|
| 1 | Theft Deterrent Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution |
| 2 | Theft Deterrent Module Procedure Disconnect the electrical connector. After repairs, refer to Control Module References for programming and set up information. |
