Steering Wheel Secondary/Configurable Controls

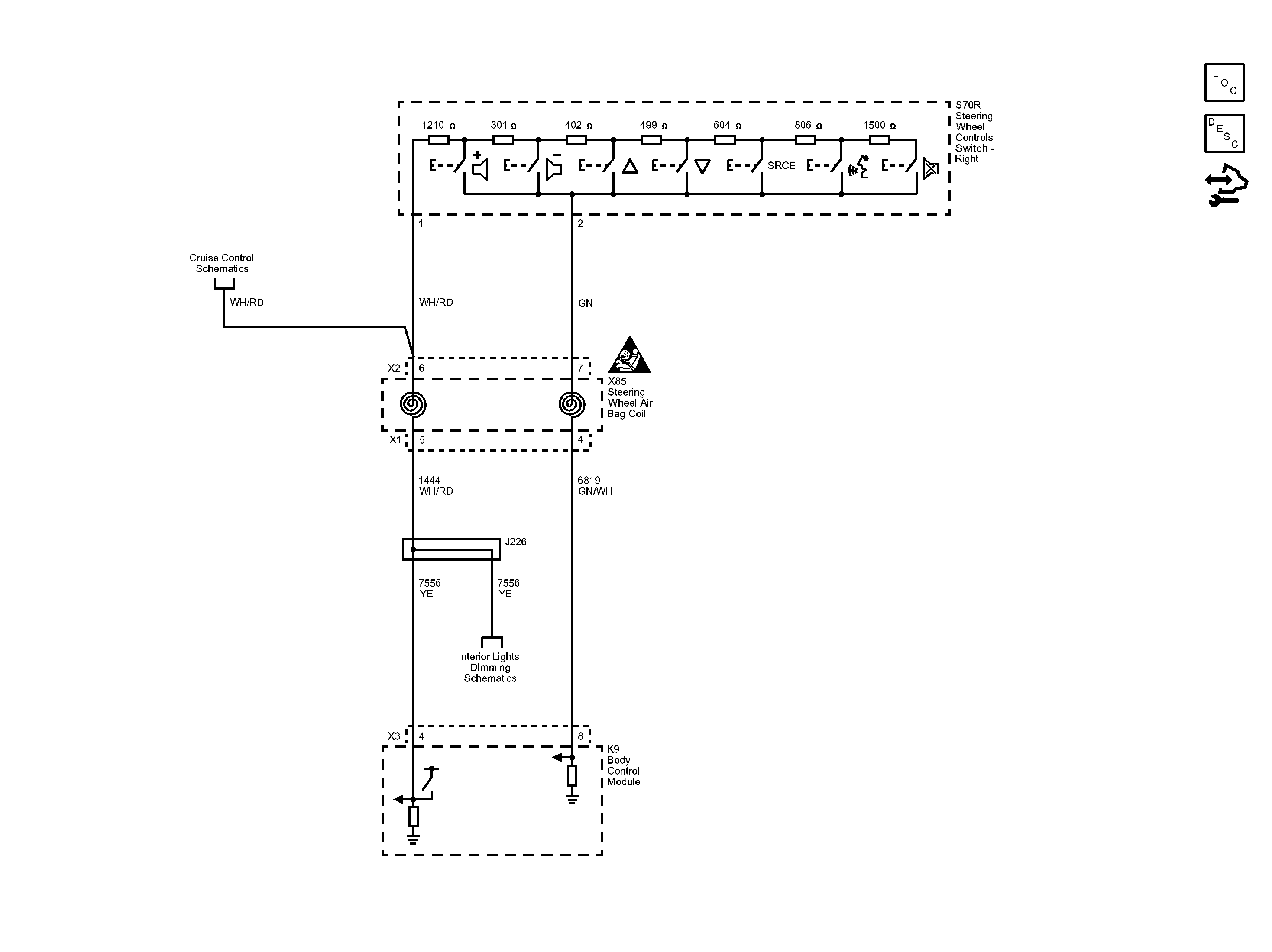

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic

GM2852444

Courtesy of GENERAL MOTORS COMPANY
