Installation Procedure

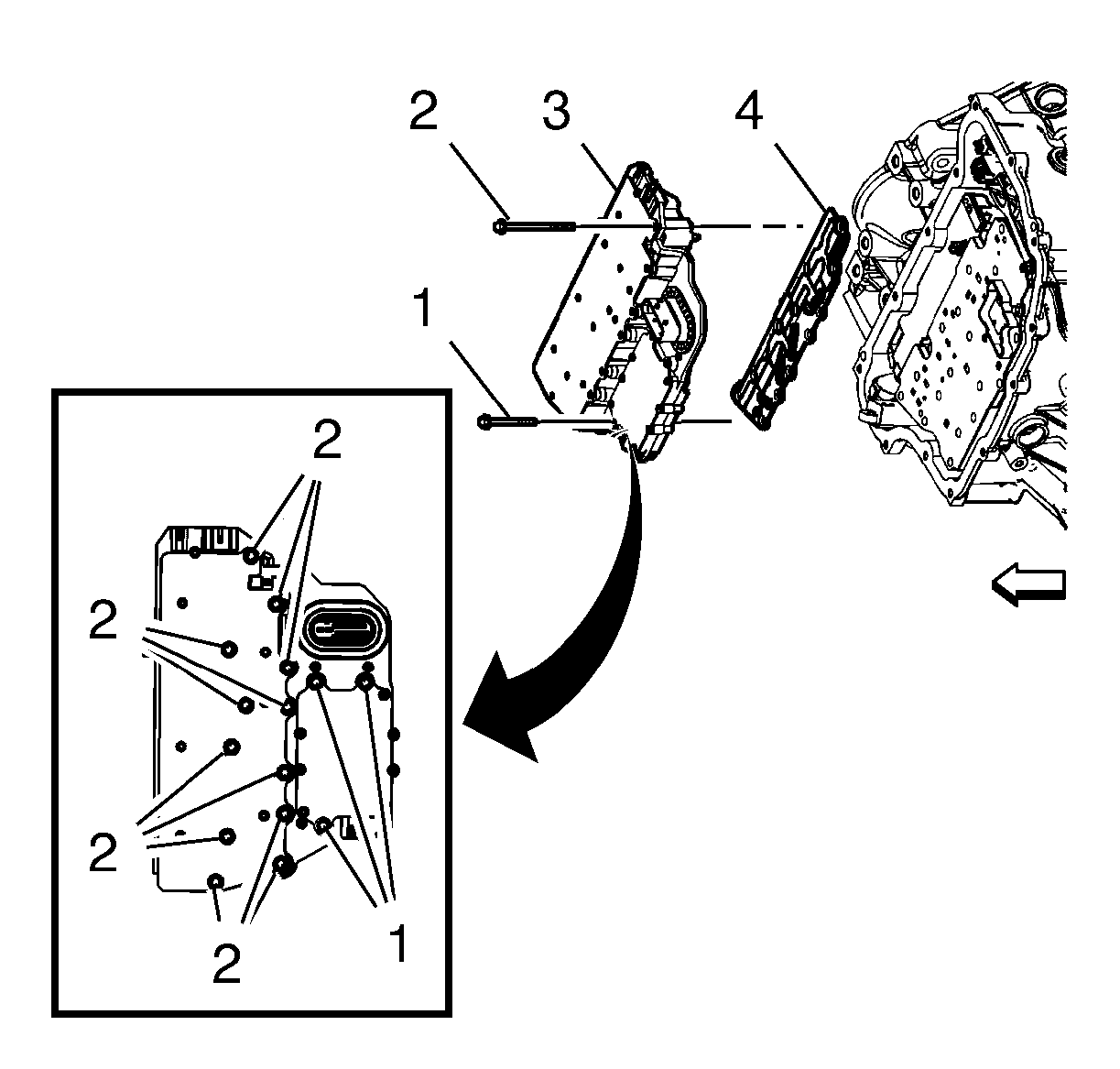

- Install a NEW control solenoid valve assembly filter plate (4) to prevent fluid leaks past the fluid seals.
- Install the control solenoid valve assembly (3) with transmission control module.
- Hand start the control valve body bolts (1, 2).

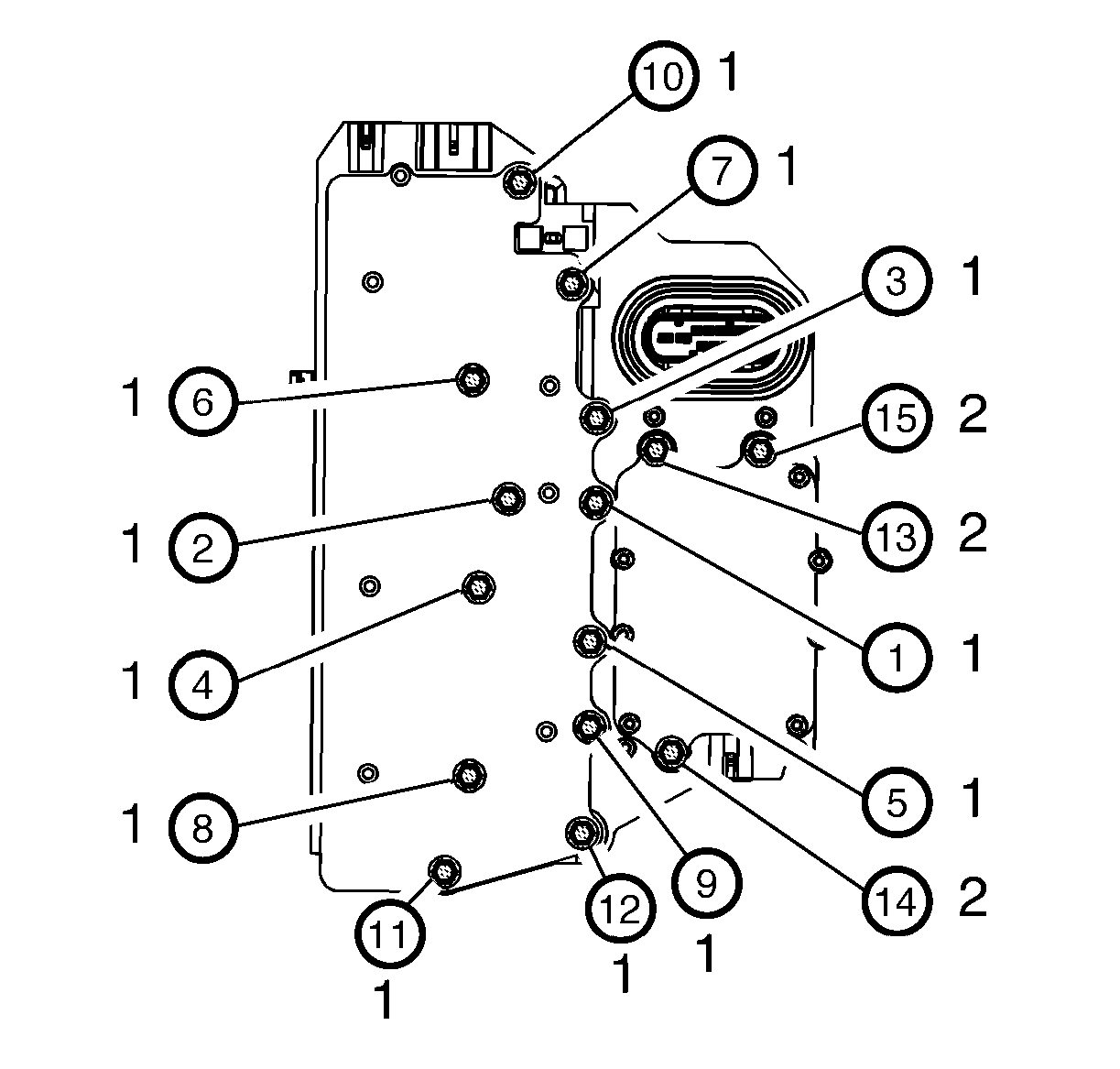

- Secure the 12 control valve body bolts (2) M6 x 97 and tighten in sequence to 12 N.m (106 lb in).
- Secure the 3 control valve body bolts (1) M5 x 40.5 and tighten in sequence to 8 N.m (71 lb in).
- Connect the input speed sensor electrical connector (1).
- Connect the output speed sensor electrical connector (2).
- Install the transmission control valve body cover. Refer to Control Valve Body Cover Replacement (2.4L LEA) , Control Valve Body Cover Replacement (2.0L LHU) .
- After repairs, refer to Control Module References for programming and set up procedures.
- Learn adaptive values. Refer to Transmission Adaptive Values Learn .
CAUTION:
Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination.
CAUTION:
Refer to Fastener Caution .
