Radio Rear Compartment Speaker Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

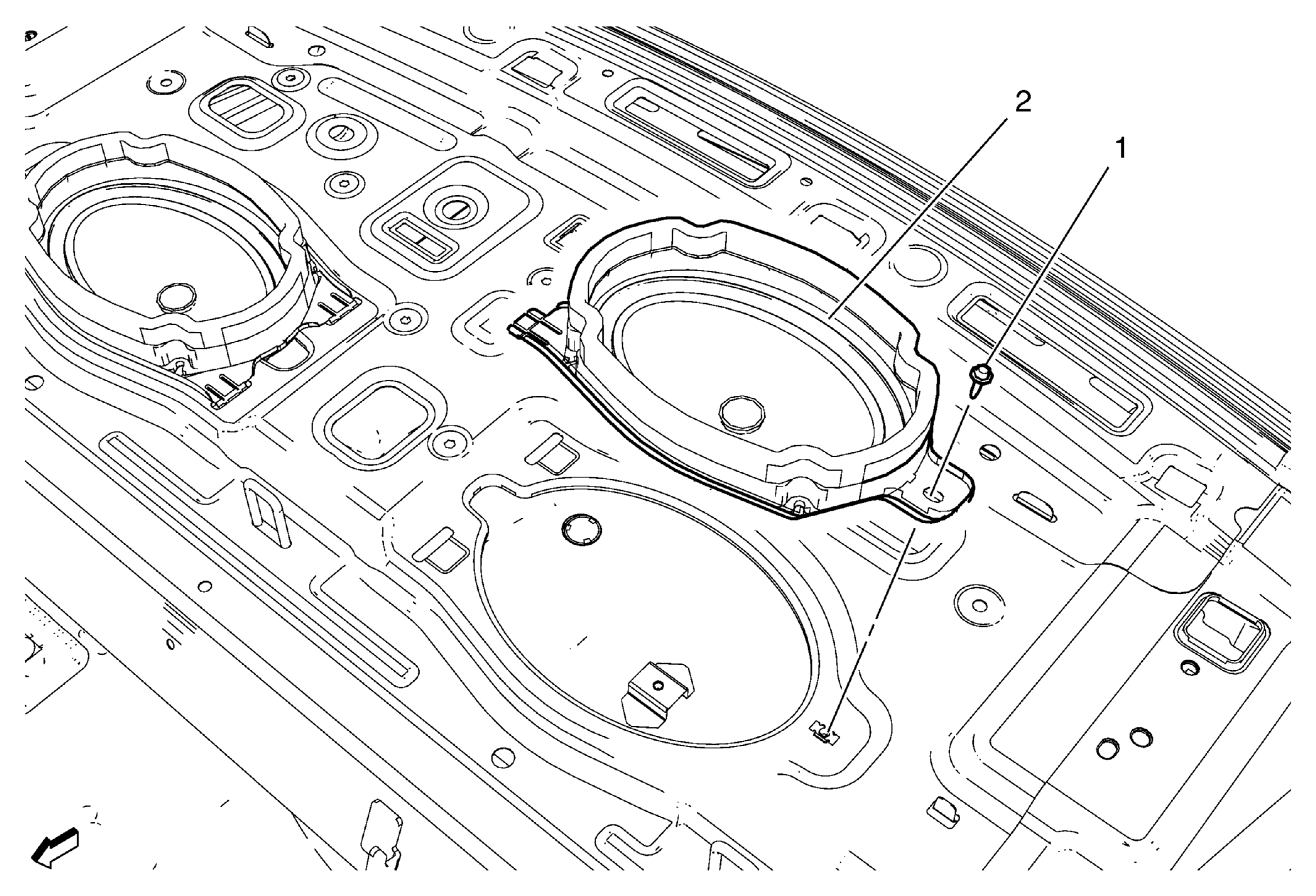

Fig 1: Radio Rear Compartment Speaker & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove rear window panel trim. Refer to Rear Window Panel Trim Replacement .
1	Radio Rear Speaker Compartment Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Rear Compartment Speaker Procedure Disconnect electrical connector.
