Installation Procedure

  1. Install fuse block with integrated positive battery cable and lock the retaining tabs.
    2. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Due to various option content there might be 2 or 4 body wiring harness nuts installed.

  2. Install body wiring harness and body wiring harness nuts and tighten to 2.5 N.m (22 lb in).
  3. Install front compartment fuse block cable nut and tighten to 12 N.m (106 lb in).
  4. Install the starter generator cable and starter generator cable nut and tighten to 12 N.m (106 lb in).
  5. Install the 2 fuse block mounting panel nuts and tighten to 12 N.m (106 lb in).
  6. Install the positive battery cable to the battery and tighten to 4.5Y (40 lb in).

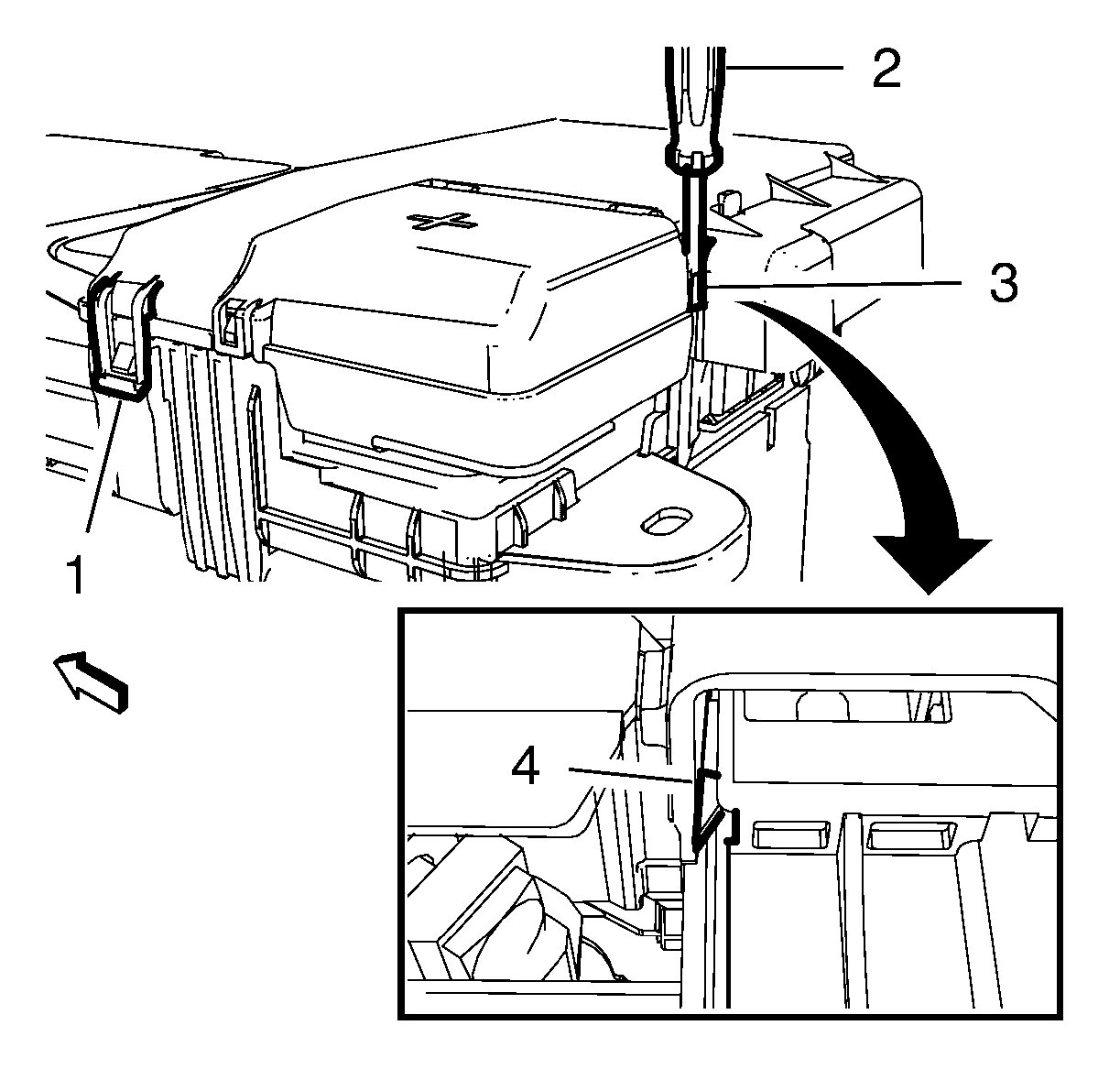

    7. Fig 1: Battery Fuse Box Cover
    GM2577153Courtesy of GENERAL MOTORS COMPANY
  7. Close the battery fuse box cover and lock the retaining tabs (1, 4).
  8. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
