Power Steering Fluid Cooling Pipe Replacement
Courtesy of GENERAL MOTORS COMPANY Power Steering Fluid Cooling Pipe Replacement

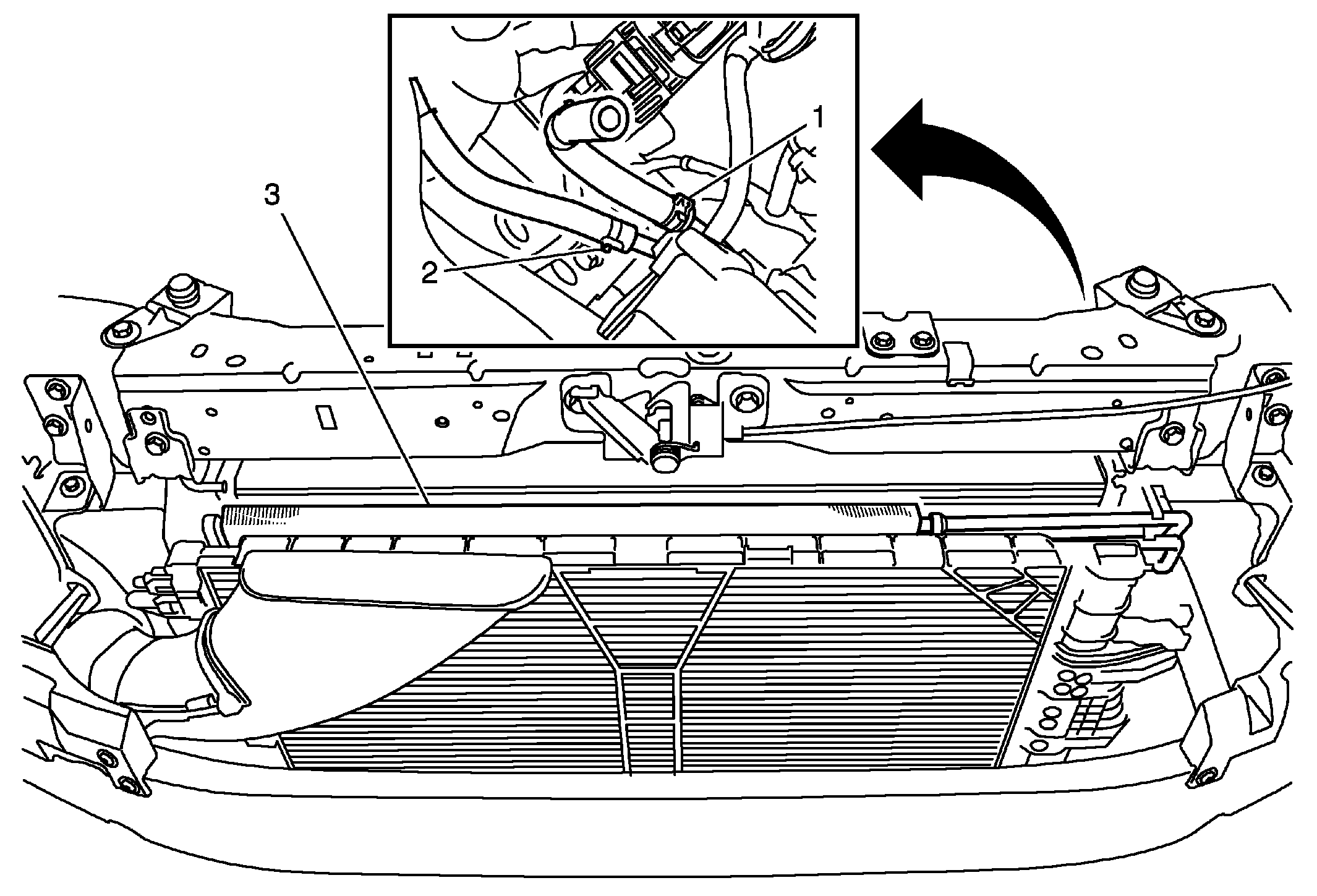

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front bumper fascia center support-lower. Refer to Front Bumper Fascia Center Support Replacement - Lower
.
- Remove the power steering fluid reservoir. Refer to Power Steering Fluid Reservoir Replacement .
|
| 1 |
Power Steering Fluid Cooler Outlet Hose Clamp |
| 2 |
Power Steering Fluid Cooler Inlet Hose Clamp |
| 3 |
Power Steering Fluid Cooler Procedure
- Remove the power steering fluid cooling pipe from the clips.
- Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
- Clean any excess power steering fluid from the vehicle.
|
