Radio Replacement

WARNING: This page is about a different car, the 2012 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

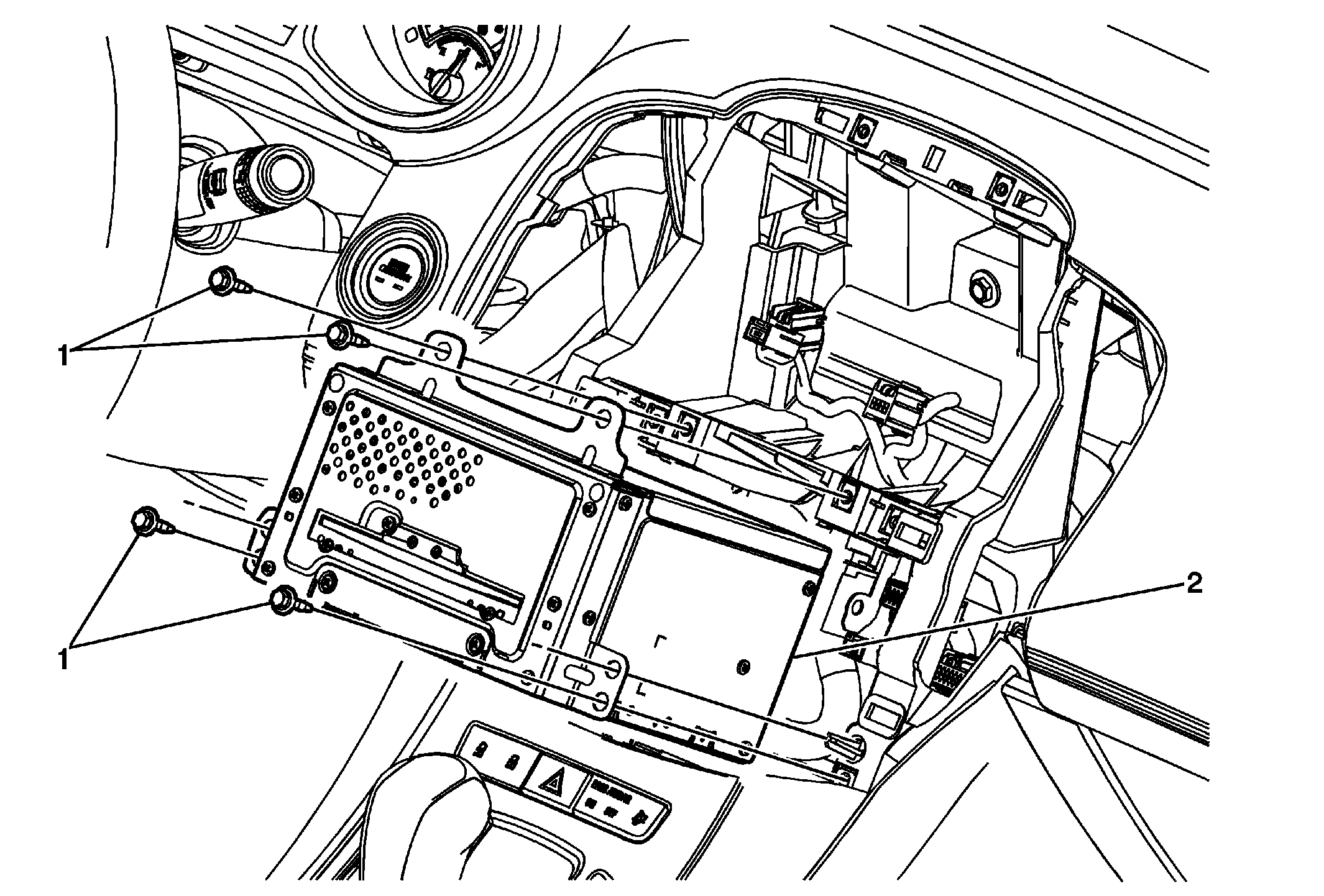

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Radio Replacement

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement . NOTE: The Center of the Radio Assembly may have a mounted Bluetooth Antenna. Do not touch or apply any pressure to the Bluetooth Antenna during removal or installation.
1	Radio Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Radio Procedure Disconnect the electrical connections. After repairs, refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .

NOTE:

The Center of the Radio Assembly may have a mounted Bluetooth Antenna. Do not touch or apply any pressure to the Bluetooth Antenna during removal or installation.

Radio Fastener (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Radio

Procedure

Disconnect the electrical connections.
After repairs, refer to Control Module References for programming and set up information.
