Tail Lamp Replacement

WARNING: This page is about a different car, the 2012 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

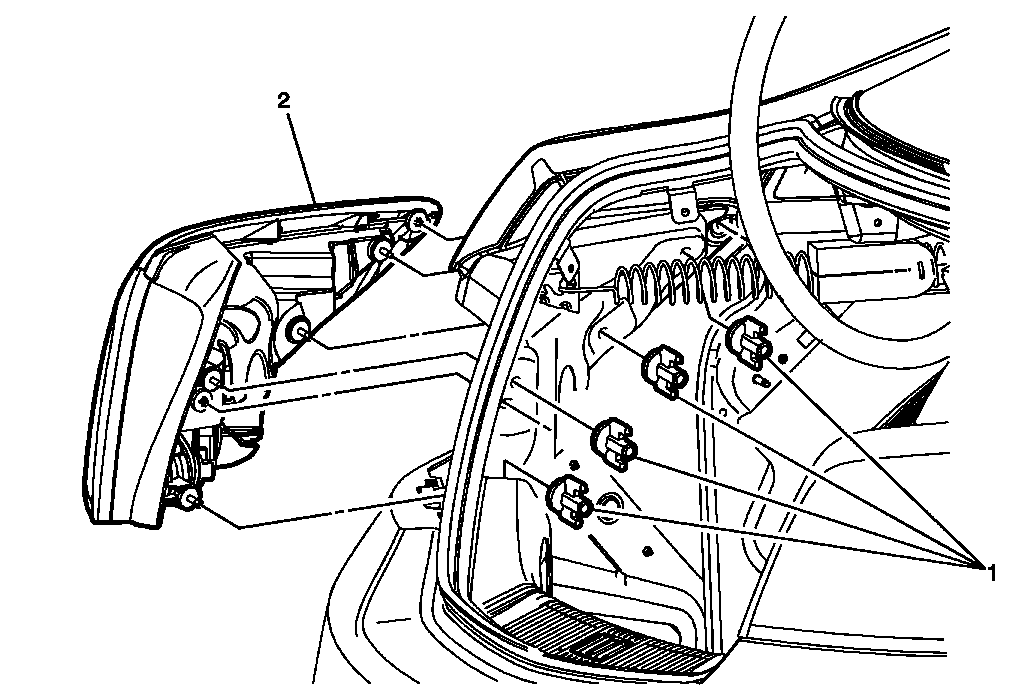

Fig 1: Tail Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the service opening from the rear compartment side trim panel in order to expose the tail lamp fasteners.
1	Tail Lamp Fastener (Qty: 4) Procedure Hand tighten the fasteners only.
2	Tail Lamp WARNING: Refer to Halogen Bulb Warning . Procedure Lift front of lamp and pull lamp out and rearward. Disconnect the tail lamp electrical connector.

Callout

Component Name

Preliminary Procedure
Open the service opening from the rear compartment side trim panel in order to expose the tail lamp fasteners.

Tail Lamp Fastener (Qty: 4)
Procedure
Hand tighten the fasteners only.

Tail Lamp

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Lift front of lamp and pull lamp out and rearward.
Disconnect the tail lamp electrical connector.
