Steering Gear Heat Shield Replacement (NJ1)
Steering Gear Heat Shield Replacement (NJ1)

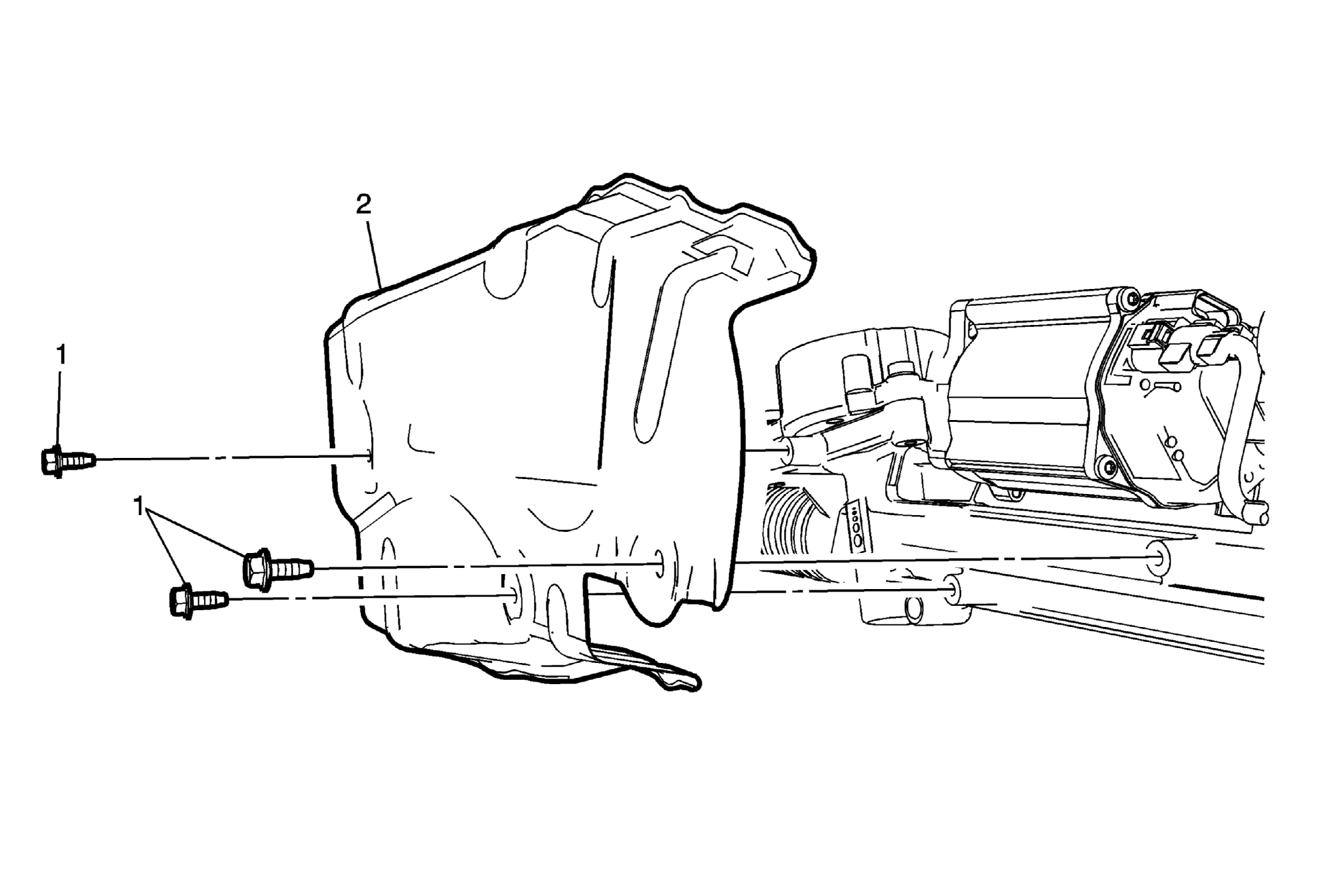

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Steering Gear Heat Shield Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Steering Gear Heat Shield |
