Engine Components - Top (LTD)

Items
1: Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LHU/LDK)Q17D Fuel Injector 4 (LLU)Q17D Fuel Injector 4 (LTD)Q17D Fuel Injector 4 (LUK/LAF)
2: Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LHU/LDK)Q17C Fuel Injector 3 (LLU)Q17C Fuel Injector 3 (LTD)Q17C Fuel Injector 3 (LUK/LAF)
3: Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LHU/LDK)Q17B Fuel Injector 2 (LLU)Q17B Fuel Injector 2 (LTD)Q17B Fuel Injector 2 (LUK/LAF)
4: Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LHU/LDK)Q17A Fuel Injector 1 (LLU)Q17A Fuel Injector 1 (LTD)Q17A Fuel Injector 1 (LUK/LAF)
5: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LAF)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LDK)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTD)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUK/LHU)
6: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LAF)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LDK)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTD)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUK/LHU)
7: T8A Ignition Coil 1 T8A Ignition Coil 1
8: T8B Ignition Coil 2 T8B Ignition Coil 2
9: T8C Ignition Coil 3 T8C Ignition Coil 3
10: T8D Ignition Coil 4 T8D Ignition Coil 4

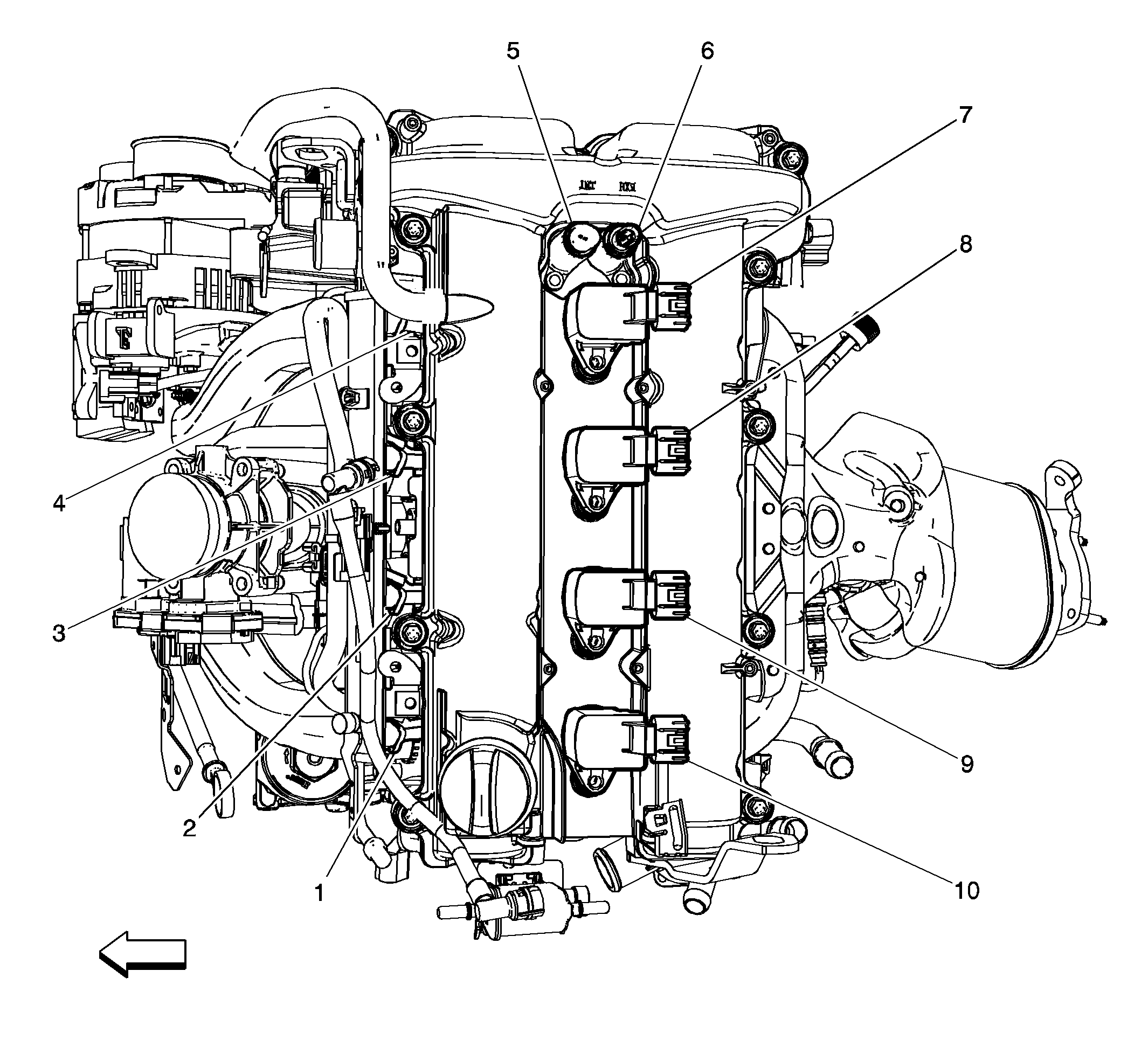

Fig 1: Engine Components - Top (LTD)

Courtesy of GENERAL MOTORS COMPANY
