Engine Components - Top (LDK)

Items
1: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LAF)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LDK)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LDK/LTD)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LUK/LHU)
2: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LAF)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LDK)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTD)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUK/LHU)
3: T8A Ignition Coil 1 T8A Ignition Coil 1
4: T8B Ignition Coil 2 T8B Ignition Coil 2
5: T8C Ignition Coil 3 T8C Ignition Coil 3
6: T8D Ignition Coil 4 T8D Ignition Coil 4
7: B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor
8: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor LHU/LDK B74 Manifold Absolute Pressure Sensor LUK/LTD
9: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LAF/LDK/LTD)Q12 Evaporative Emission Purge Solenoid Valve (LLU)Q12 Evaporative Emission Purge Solenoid Valve (LUK/LHU)
10: Q40 Turbocharger Bypass Solenoid Valve (LHU/ LDK/ LLU) Q40 Turbocharger Bypass Solenoid Valve (LHU)Q40 Turbocharger Bypass Solenoid Valve (LLU)
11: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LAF/LDK/LTD)Q12 Evaporative Emission Purge Solenoid Valve (LLU)Q12 Evaporative Emission Purge Solenoid Valve (LUK/LHU)
12: Q40 Turbocharger Bypass Solenoid Valve (LHU/ LDK/ LLU) Q40 Turbocharger Bypass Solenoid Valve (LHU)Q40 Turbocharger Bypass Solenoid Valve (LLU)

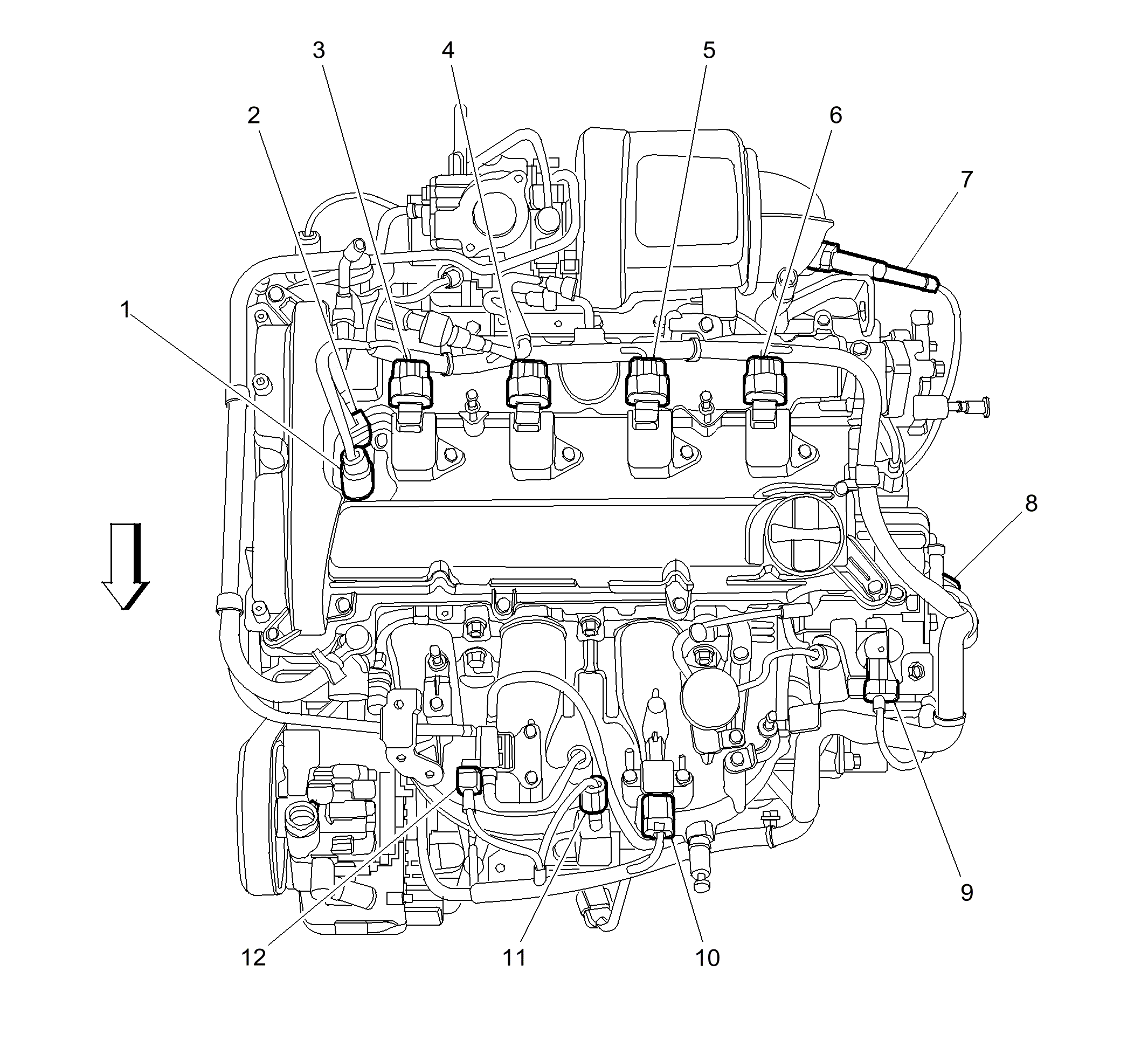

Fig 1: Engine Components - Top (LDK)

Courtesy of GENERAL MOTORS COMPANY
