Mode Valve Lever Replacement

WARNING: This page is about a different car, the 2012 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

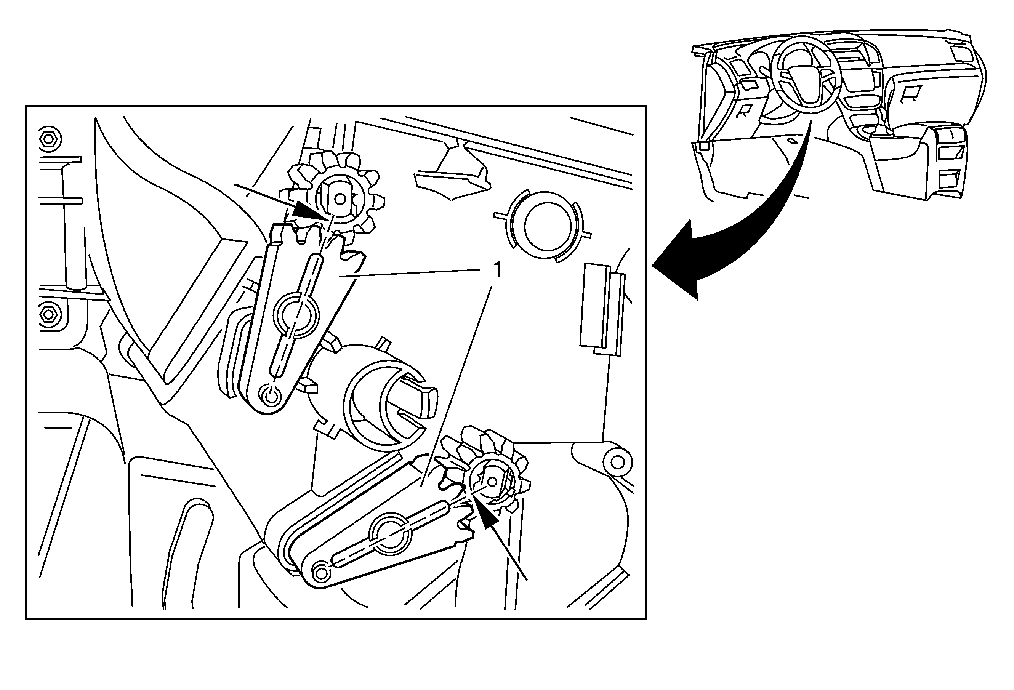

Fig 1: Mode Valve Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement (Left Hand Drive) . Remove the instrument cluster. Refer to Instrument Cluster Replacement . Remove the mode control cam. Refer to Mode Control Cam Replacement .
1	Mode Valve Lever Procedure Move the valve to the middle position and mark the position of the mode valve lever notch to the mode valve gear. TIP: Use the indentation for the correct positioning of the lever arms.

Callout

Component Name

Preliminary Procedures

Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement (Left Hand Drive) .
Remove the instrument cluster. Refer to Instrument Cluster Replacement .
Remove the mode control cam. Refer to Mode Control Cam Replacement .

Mode Valve Lever
Procedure
Move the valve to the middle position and mark the position of the mode valve lever notch to the mode valve gear.
TIP: Use the indentation for the correct positioning of the lever arms.
