Linear Interconnect Network (except CZ2)

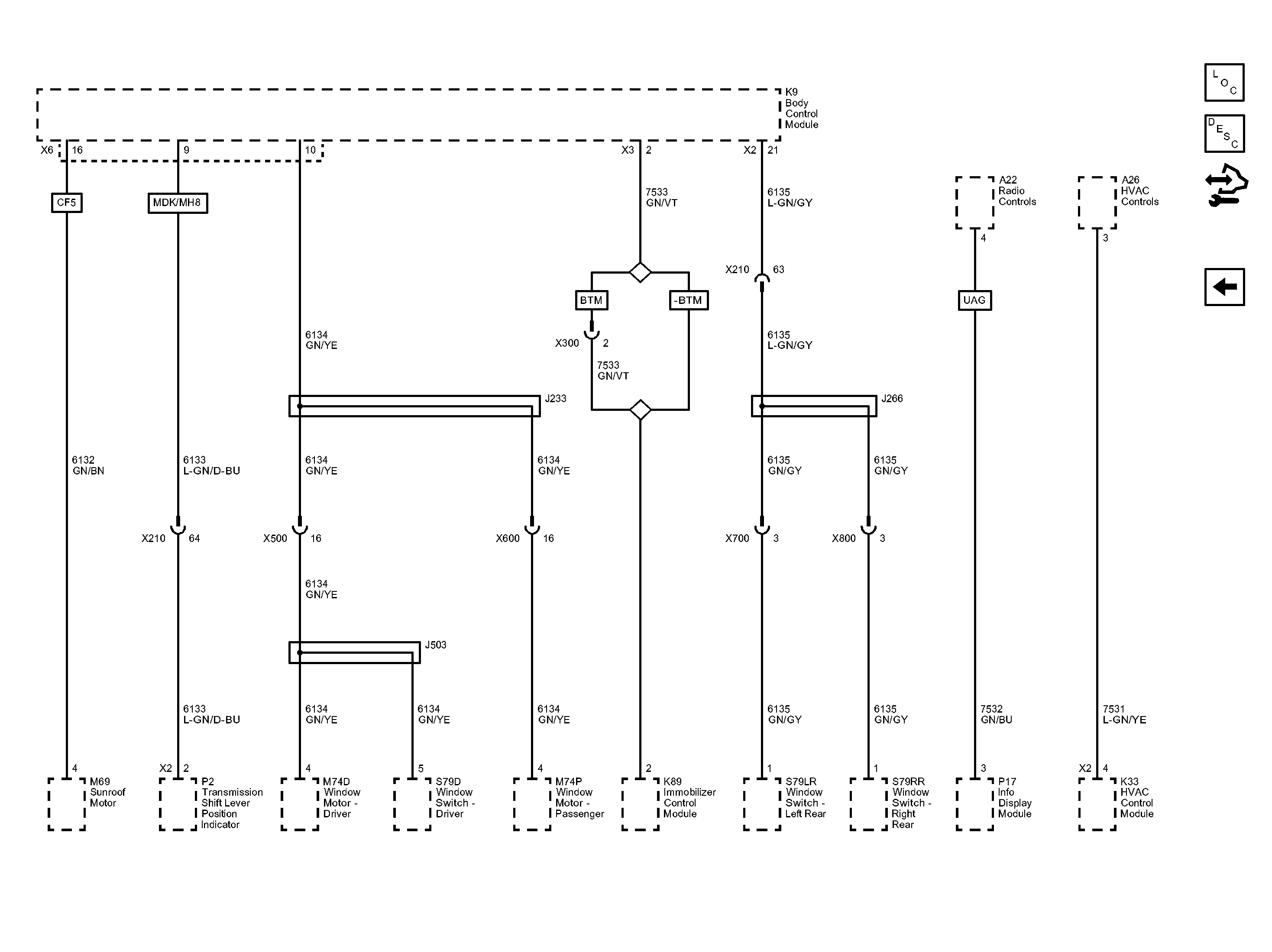

Fig 1: Linear Interconnect Network Wiring Schematic (except CZ2)

GM2790092

Courtesy of GENERAL MOTORS COMPANY
