Power, Ground, and Serial Data

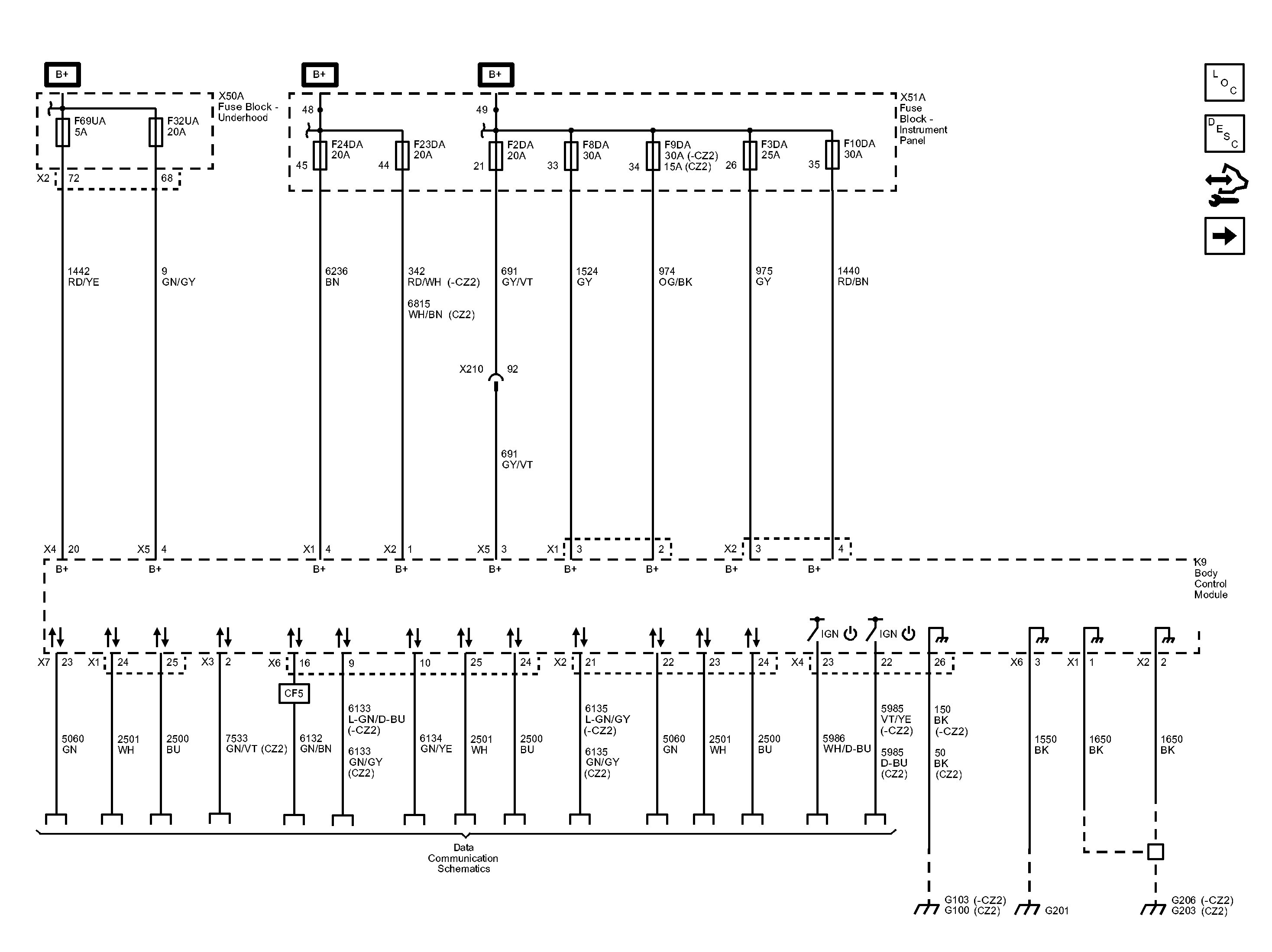

Fig 1: Power, Ground, and Serial Data Wiring Schematic

GM2790093

Courtesy of GENERAL MOTORS COMPANY
