Fuel Feed Pipe Replacement

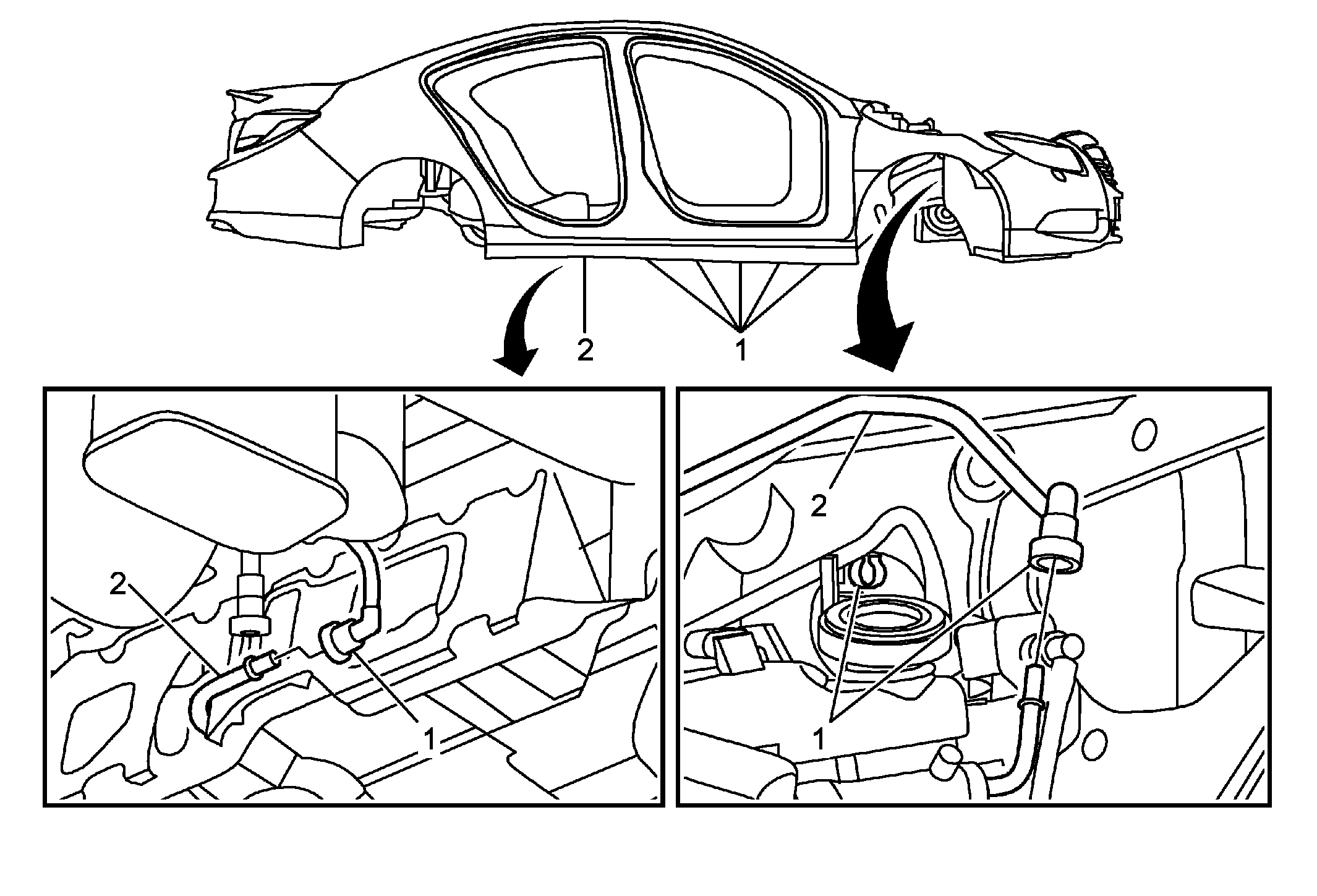

Fig 1: Fuel Feed Pipe & Retainers (LTD)
GM2193911Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Pipe Replacement

Callout Component Name
1 Fuel Feed Pipe Retainer (Qty: 8)
Refer to Plastic Collar Quick Connect Fitting Service .
2 Fuel Feed Pipe
