Air Cleaner Inlet Duct Replacement

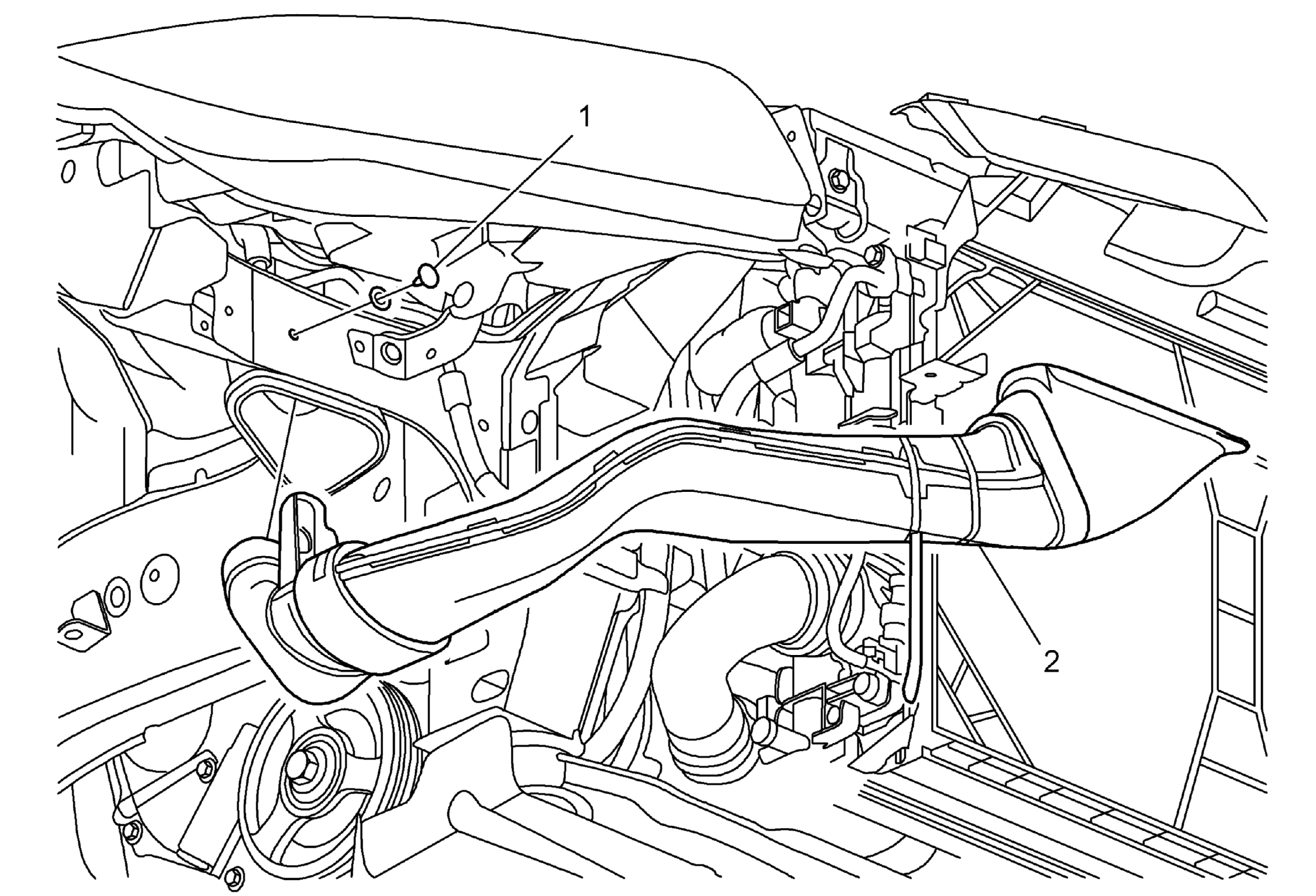

Fig 1: Air Cleaner Inlet Duct & Retainer
GM2193890Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Inlet Duct Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove the front bumper fascia support. Refer to Front Bumper Fascia Support Replacement (Right Side) , Front Bumper Fascia Support Replacement (Left Side) .
1 Air Cleaner Inlet Duct Retainer
2 Air Cleaner Inlet Duct
