Generator Replacement (L4)

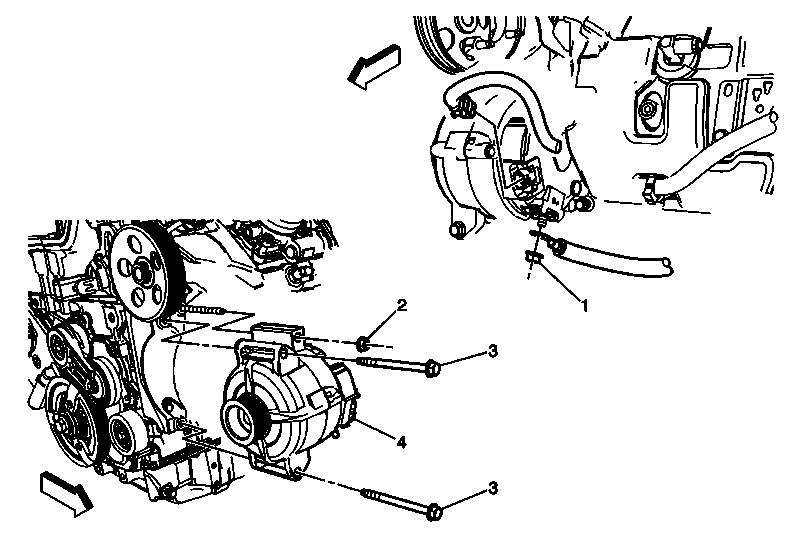

Fig 1: Generator & Bolts (L4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the drive belt. Refer to Drive Belt Replacement (LEA) , Drive Belt Replacement (LUK) . Disconnect the engine harness generator connector.
1	Generator Battery Positive Nut CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Generator Nut (Qty: 1) Tighten 22 N.m (16 lb ft)
3	Generator Bolt (Qty: 2) Tighten 22 N.m (16 lb ft)
4	Generator
